CNC TURNING CENTERS: HYUNDAI HIT-18S, SIEMENS 840C, 17.3 SWING, CHUCKER, 10 CHUCK, CHIP, NICE, '96 (3992)

HYUNDAI HIT-18S, SIEMENS 840C, 17.3 SWING, CHUCKER, 10 CHUCK, CHIP, NICE, '96 (3992)

Stock Number: 3992

Age: 1996

CNC TURNING CENTERS: HYUNDAI HIT-18S, SIEMENS 840C, 17.3 SWING, CHUCKER, 10 CHUCK, CHIP, NICE, '96 (3992), Click to view larger photo...       CNC TURNING CENTERS: HYUNDAI HIT-18S, SIEMENS 840C, 17.3 SWING, CHUCKER, 10 CHUCK, CHIP, NICE, '96 (3992), Click to view larger photo...       CNC TURNING CENTERS: HYUNDAI HIT-18S, SIEMENS 840C, 17.3 SWING, CHUCKER, 10 CHUCK, CHIP, NICE, '96 (3992), Click to view larger photo...       CNC TURNING CENTERS: HYUNDAI HIT-18S, SIEMENS 840C, 17.3 SWING, CHUCKER, 10 CHUCK, CHIP, NICE, '96 (3992), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 3992 CNC TURNING CENTERS: HYUNDAI HIT-18S, SIEMENS 840C, 17.3 SWING, CHUCKER, 10 CHUCK, CHIP, NICE, '96 (3992)Request a quote on stock# 3992
SpecificationDescription
APPROXIMATE AGE1996
SWING OVER BED17.32"
MAXIMUM TURNING DIAMETER11.0"
MAXIMUM TURNING LENGTH20"
X AXIS TRAVEL7.09"
Z AXIS TRAVEL20.08"
RAPID TRAVERSE RATE X AXIS1181 IPM
RAPID TRAVERSE RATE Z AXIS1181 IPM
SPINDLE NOSEA2-8
SPINDLE BORE3.1"
MAXIMUM BAR CAPACITY2.5"
SPINDLE SPEEDS36 - 3,600 RPM
SPINDLE MOTOR20 HP

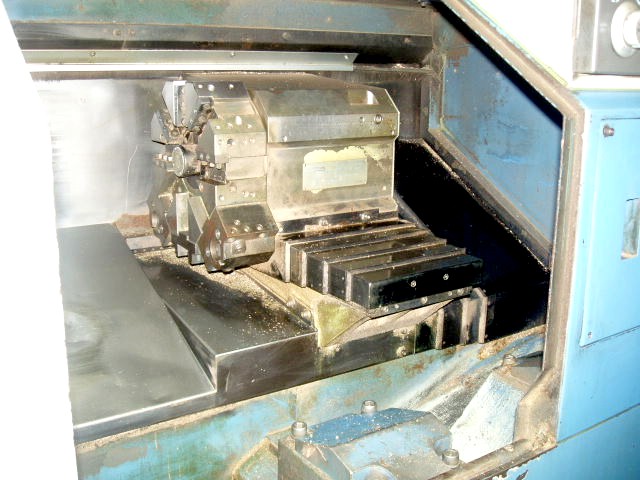

TURRET CAPACITY8 STATION TURRET
APPROXIMATE DIMENSIONS101" x 64" x 72"
MACHINE WEIGHT (APPROXIMATE)10,500 LBS

Equipped With:
SIEMENS 840C CNC CONTROL WITH 9" MONOCHROME CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

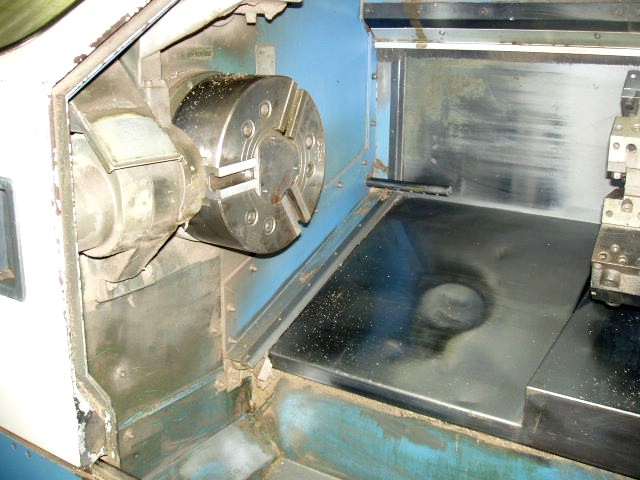

10" 3-JAW HYDRAULIC THROUGH HOLE CHUCK
TOOL EYE (AUTOMATIC TOOL PRESETTER ARM)
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED SPLASH GUARDING & ENCLOSURES
ALL AVAILABLE TOOL HOLDERS, ALL AVAILABLE MANUALS
