CNC TURNING CENTERS: TAKISAWA EX-308, FANUC 21T, 8 CHUCK, LIVE TOOLING,TAILSTOCK, '04 (3986)

TAKISAWA EX-308, FANUC 21T, 8 CHUCK, LIVE TOOLING,TAILSTOCK, '04 (3986)

Stock Number: 3986

Age: 2004

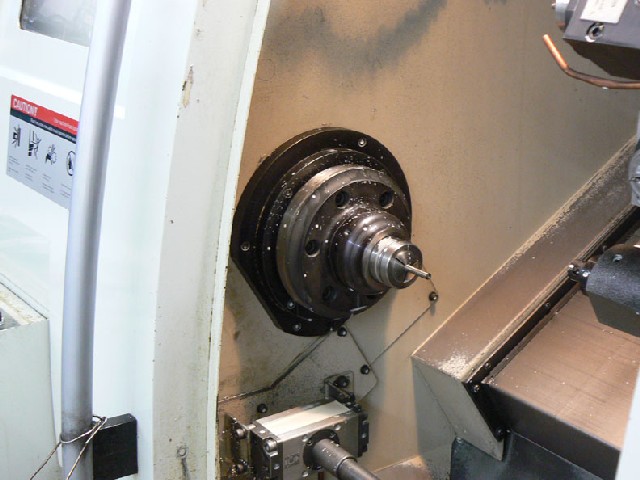

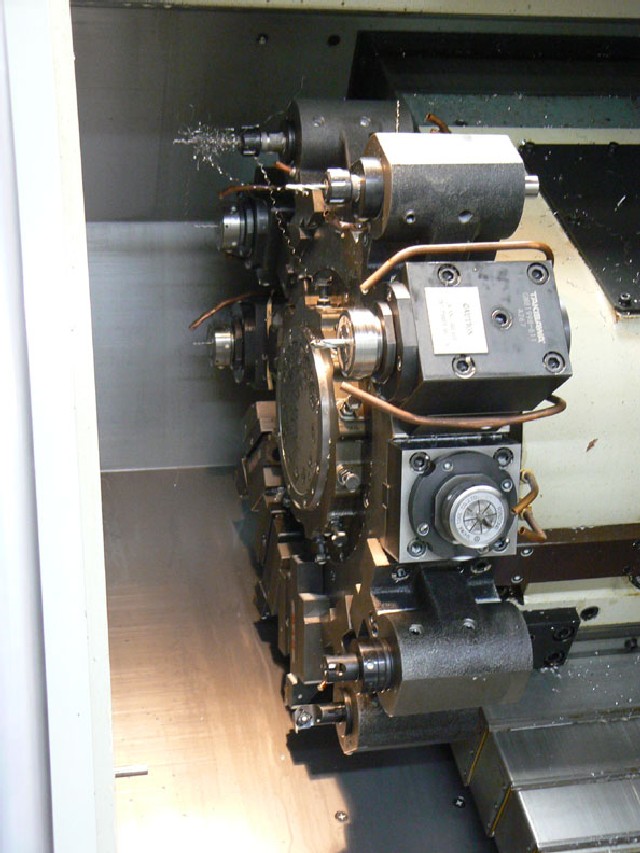

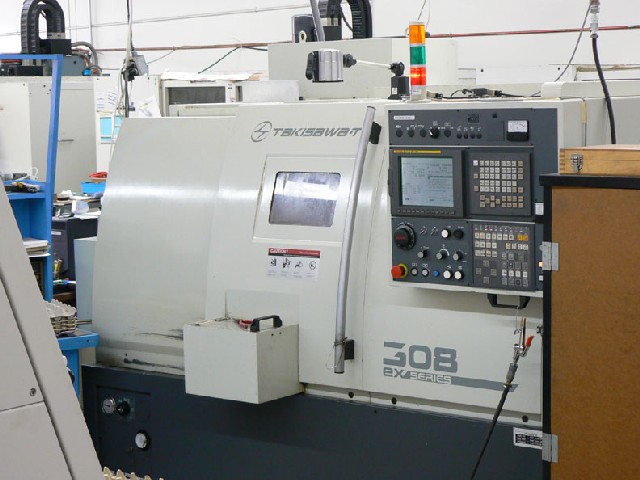

CNC TURNING CENTERS: TAKISAWA EX-308, FANUC 21T, 8 CHUCK, LIVE TOOLING,TAILSTOCK, '04 (3986), Click to view larger photo...       CNC TURNING CENTERS: TAKISAWA EX-308, FANUC 21T, 8 CHUCK, LIVE TOOLING,TAILSTOCK, '04 (3986), Click to view larger photo...       CNC TURNING CENTERS: TAKISAWA EX-308, FANUC 21T, 8 CHUCK, LIVE TOOLING,TAILSTOCK, '04 (3986), Click to view larger photo...       CNC TURNING CENTERS: TAKISAWA EX-308, FANUC 21T, 8 CHUCK, LIVE TOOLING,TAILSTOCK, '04 (3986), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 3986 CNC TURNING CENTERS: TAKISAWA EX-308, FANUC 21T, 8 CHUCK, LIVE TOOLING,TAILSTOCK, '04 (3986)Request a quote on stock# 3986
SpecificationDescription
INSTALLED NEW2004
MAXIMUM SWING17.7"
MAXIMUM TURNING DIAMETER10.2"
MAXIMUM TURNING LENGTH18.2"
X AXIS TRAVEL7.1"
Z AXIS TRAVEL20.9"
C AXIS INDEXING.001
THROUGH SPINDLE HOLE DIAM.1.77"
SPINDLE NOSEA2-6
SPINDLE SPEEDS40 - 4,000 RPM
SPINDLE MOTOR20 HP
TURRET CAPACITY12 STATION TURRET
LIVE TOOL MOTOR5 HP
LIVE TOOL SPEEDS4,000 RPM
DIMENSIONS, APPROX.93" x 70" x 80"
WEIGHT, APPROX.9500 lbs

Equipped With:
FANUC 21T CNC CONTROL WITH 9" CRT SCREEN
RS-232C PORT INTERFACE FOR DNC OPERATION
8.00" CHUCK, 5C COLLET NOSE
PARTS CATCHER, CHIP CONVEYOR

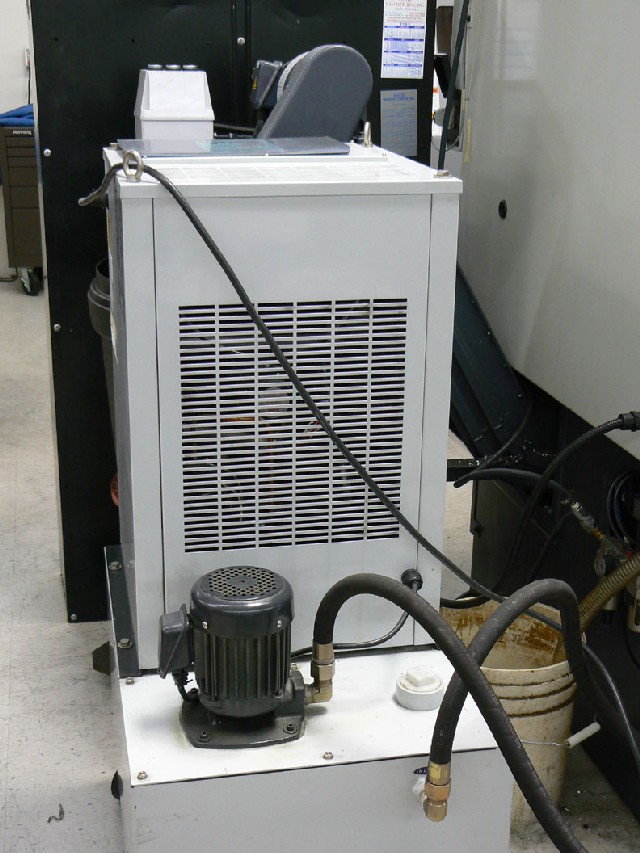

STANDARD COOLANT SYSTEM, ALL AVAILABLE MANAULS AND TOOLING
