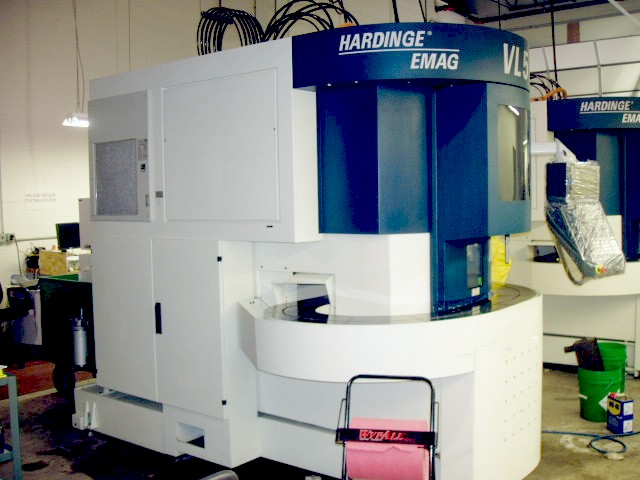

CNC TURNING CENTERS: HARDINGE EMAG VL-5, FANUC 18iT, LIVE TOOL, LIKE NEW '01/'04 (3936)

HARDINGE EMAG VL-5, FANUC 18iT, LIVE TOOL, LIKE NEW '01/'04 (3936)

Stock Number: 3936

CNC TURNING CENTERS: HARDINGE EMAG VL-5, FANUC 18iT, LIVE TOOL, LIKE NEW '01/'04 (3936), Click to view larger photo...       CNC TURNING CENTERS: HARDINGE EMAG VL-5, FANUC 18iT, LIVE TOOL, LIKE NEW '01/'04 (3936), Click to view larger photo...       CNC TURNING CENTERS: HARDINGE EMAG VL-5, FANUC 18iT, LIVE TOOL, LIKE NEW '01/'04 (3936), Click to view larger photo...       CNC TURNING CENTERS: HARDINGE EMAG VL-5, FANUC 18iT, LIVE TOOL, LIKE NEW '01/'04 (3936), Click to view larger photo...       CNC TURNING CENTERS: HARDINGE EMAG VL-5, FANUC 18iT, LIVE TOOL, LIKE NEW '01/'04 (3936), Click to view larger photo...       CNC TURNING CENTERS: HARDINGE EMAG VL-5, FANUC 18iT, LIVE TOOL, LIKE NEW '01/'04 (3936), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 3936 CNC TURNING CENTERS: HARDINGE EMAG VL-5, FANUC 18iT, LIVE TOOL, LIKE NEW '01/'04 (3936)Request a quote on stock# 3936
SpecificationDescription
DATE OF MANUFACTURE2001
DATE OF INSTALLATION3/2004
NUMBER OF STATIONS (PART PALLETS)12
PART TO PART (LOAD/UNLOAD TIME)4.5 - 6.5 SEC.
MAX. TURNING DIAMETER10.3"
MAXIMUM TURNING LENGTH4.7"
X AXIS TRAVEL22.4"
Z AXIS TRAVEL7.87"
C AXIS CONTOURING0.001�
RAPID TRAVERSE RATE X AXIS2362 IPM
RAPID TRAVERSE RATE Z AXIS1181 IPM
SPINDLE NOSEA2-6
SPINDLE SPEEDS50 - 4,500 RPM
SPINDLE MOTOR36 HP
TURRET CAPACITY (ALL CAN BE LIVE)12 STATIONS
LIVE TOOL MOTOR16 HP
LIVE TOOL SPEEDS300 - 6,000 RPM
APPROXIMATE DIMENSIONS106" x 78" x 95"
MACHINE WEIGHT (APPROXIMATE)15,500 LBS

Equipped With:

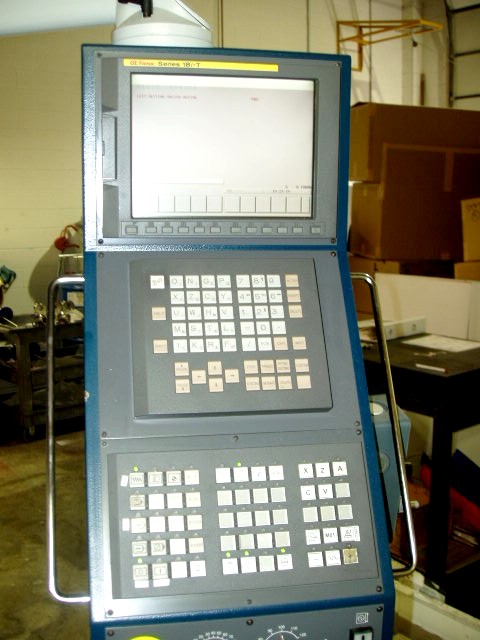

FANUC 18iT CNC CONTROL WITH 10" FULL COLOR LCD
RS-232C PORT INTERFACE FOR DNC OPERATION

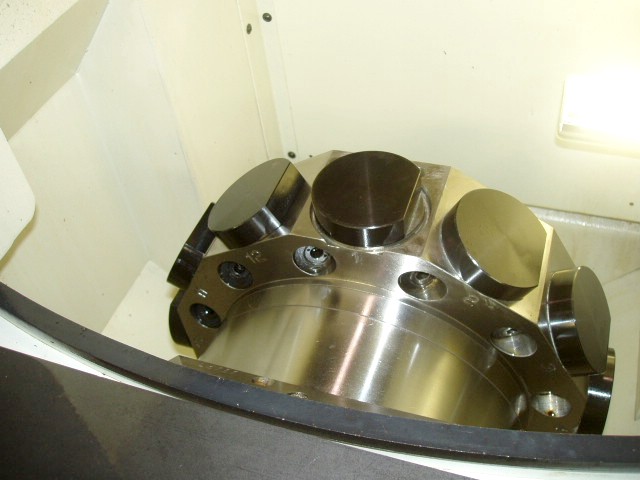

10" HYDRAULIC CHUCK, MISCELLANEOUS CHUCK JAWS
AUTO PART LOADING AND UNLOADING FULLY AUTOMATIC
STANDARD COOLANT SYSTEM WITH TANK & PUMP
REAR DISCHARGE LIFT-UP CHIP CONVEYOR WITH CART
FULLY ENCLOSED GUARDING, (1) LIVE TOOL HOLDER
18 ASSORTED TOOL HOLDERS, ALL AVAILABLE MANAULS
*****MACHINES HAVE LITERALLY NO USE, LIKE NEW*****
*****MACHINE MANUFACTURED 2001, INSTALLED 3/04*****

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
