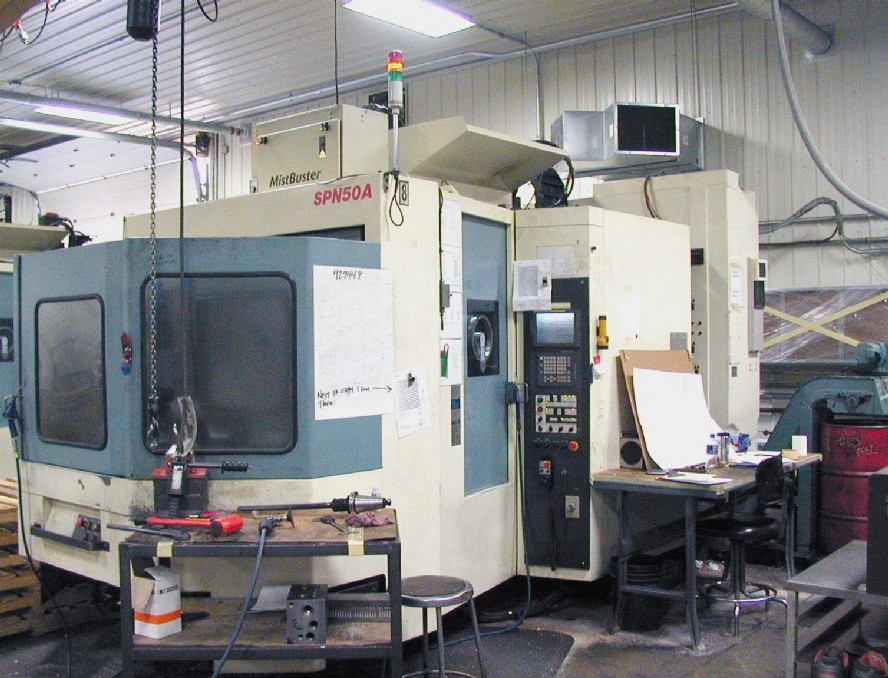

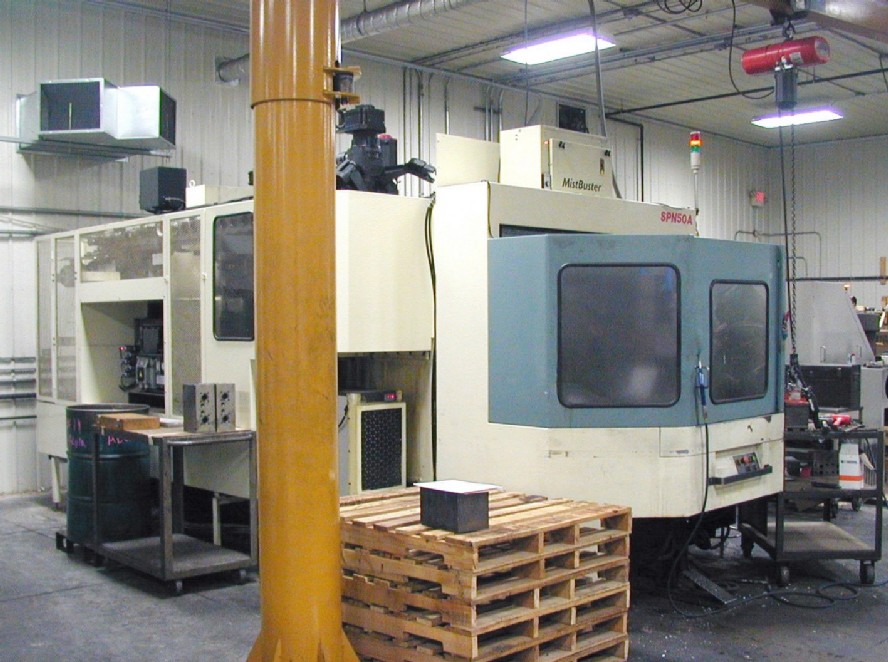

NIIGATA SPN-50 CNC HORIZONTAL MILL, FANUC, 29 x 29 x 29, 12000 RPM, 40 HP 1969 ipm RAPIDS, COOL THRU, 500 mm 60 ATC 2005


NIIGATA SPN-50 CNC HORIZONTAL MILL, FANUC, 29 x 29 x 29, 12000 RPM, 40 HP 1969 ipm RAPIDS, COOL THRU, 500 mm 60 ATC 2005

Stock Number: 4774



Click to view larger photo

Request A Quote On Our Stock Number: 4774 NIIGATA SPN-50 CNC HORIZONTAL MILL, FANUC, 29 x 29 x 29, 12000 RPM, 40 HP 1969 ipm RAPIDS, COOL THRU, 500 mm 60 ATC 2005Request a quote on stock# 4774
SpecificationDescription
DATE OF MANUFACTURE2005

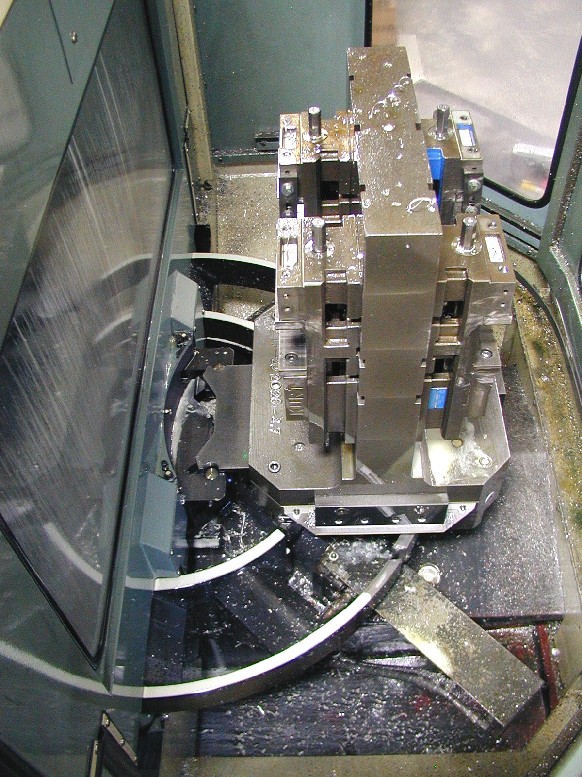

PALLET SIZE (500mm x 2)19.7" x 19.7"
MAXIMUM PALLET LOAD1,320 LBS
PALLET CHANGE TIME7.5 SECONDS
SPINDLE CENTER TO PALLET TOP5.9" - 35.4"
SPINDLE NOSE TO PALLET CENTER5.9" - 35.4"
X AXIS TRAVEL29.5"
Y AXIS TRAVEL29.5"
Z AXIS TRAVEL29.5"
B AXIS TABLE INDEXING1 DEG.
RAPID TRAVERSE RATE X, Y & Z AXIS1969 IPM
CUTTING FEED RATE0.01 - 1181 IPM
SPINDLE TAPERCAT 50
SPINDLE SPEEDS & HP12,000 RPM, 40 HP
TOOL CHANGER CAPACITY, COOLANT60 STATIONS, 106 GAL.
TOOL CHANGE TIME (TOOL TO TOOL)1.4 SECONDS
DIMENSIONS, APPROX.100" x 231" x 115"
WEIGHT, APPROX.29,300 LBS

Equipped With:
FANUC 18iM CNC CONTROL w/COLOR 10.4" LCD SCREEN,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID/SOLID TAPPING, (99) TOOL OFFSET MEMORY,
COOLANT THROUGH THE SPINDLE (215 PSI RATING),
RENISHAW MP-4 AUTO TOOL LENGTH MEASUREMENT,
INNOVATIVE DOUBLE COLUMN DESIGN, SPINDLE CHILLER,
SYNC-SWING MOTION (SSM) ULTRA-FAST TOOL CHANGER,
HELICAL INTERPOLATION, BROKEN TOOL SYSTEM,
CUSTOM MACRO B, CUTTER COMPENSATION OFFSET,
(48) FIXTURE OFFSETS, COMMON VARIABLES (600),
1050' EXTENDED MEMORY, SPECIAL CABINET COOLER,
MANUAL PULSE GENERATOR, FLOOD/CURTAIN COOLANT SYSTEM,
EXTERNAL LIFT-UP TYPE EXTERNAL CHIP CONVEYOR,

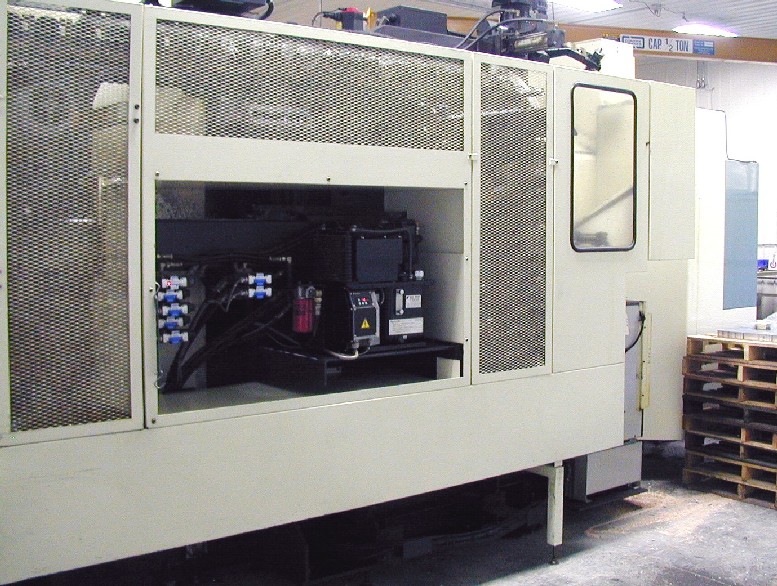

DAIKIN SPINDLE CHILLER (SPINDLE OIL COOLING SYSTEM),
**EXCELLENT CONDITION; WELL MAINTAINED w/RECORDS**
