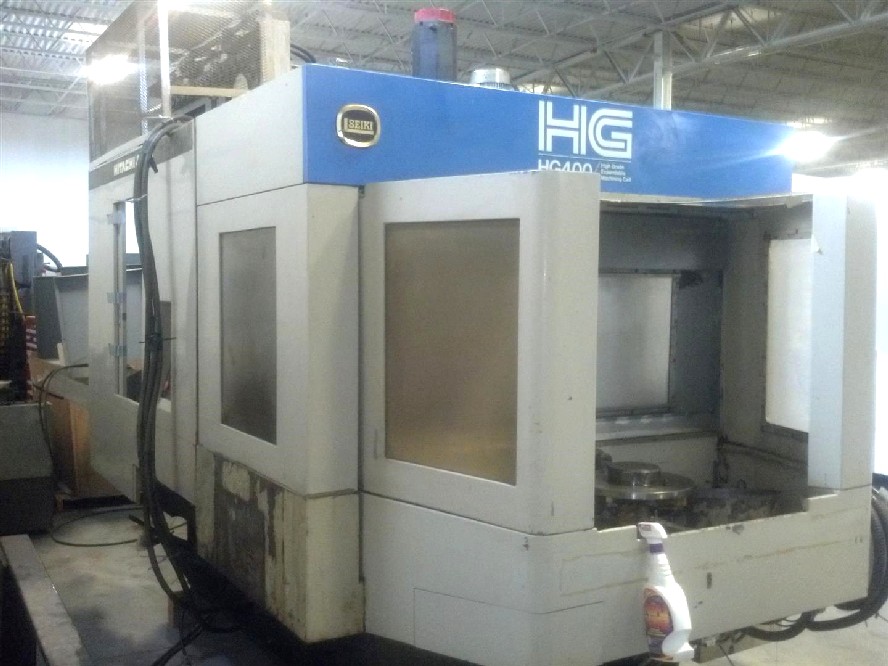

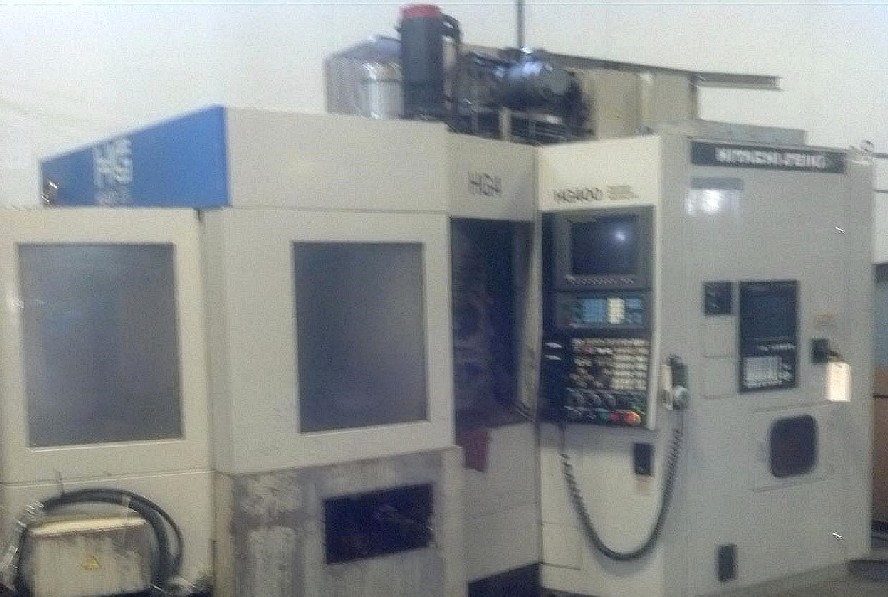

HITACHI SEIKI HG-400 MARK II CNC HORIZONTAL, FANUC 15 M, 22 x 23 x 20, FULL 4TH AXIS, 12000 RPM, 90 ATC, CHIP CONVEYOR


HITACHI SEIKI HG-400 MARK II CNC HORIZONTAL, FANUC 15 M, 22 x 23 x 20, FULL 4TH AXIS, 12000 RPM, 90 ATC, CHIP CONVEYOR

Stock Number: 4767



Click to view larger photo

Request A Quote On Our Stock Number: 4767 HITACHI SEIKI HG-400 MARK II CNC HORIZONTAL, FANUC 15 M, 22 x 23 x 20, FULL 4TH AXIS, 12000 RPM, 90 ATC, CHIP CONVEYORRequest a quote on stock# 4767
SpecificationDescription
DATE OF MANUFACTURE1994

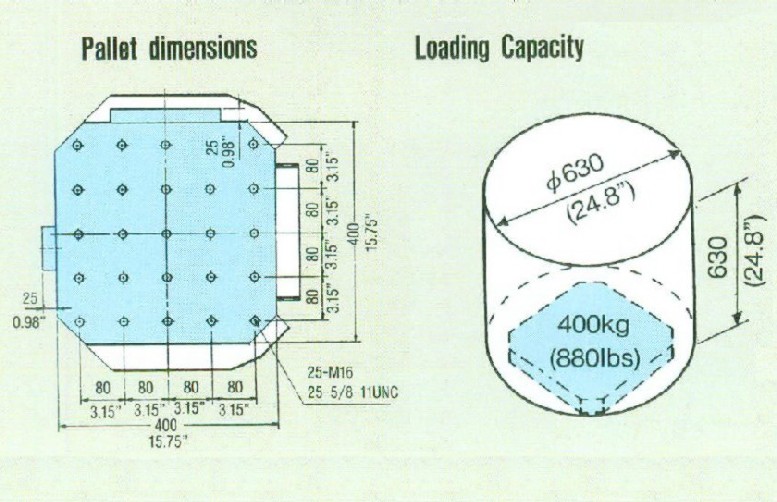

PALLET SIZE15.75" x 15.75"
MAXIMUM PALLET LOAD880 LBS
NUMBER OF PALLETS2
SPINDLE CENTER TO PALLET TOP0" - 23"
SPINDLE NOSE TO PALLET CENTER5" - 25"
X AXIS TRAVEL22"
Y AXIS TRAVEL23"
Z AXIS TRAVEL20"
B AXIS INDEXING (FULL/TRUE)360,000 DEGREE
RAPID TRAVERSE RATE X, Y & Z AXIS1417 IPM
CUTTING FEED RATE0.1 - 590 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS60 TO 12,000 RPM
SPINDLE MOTOR25 HP
TOOL CHANGER CAPACITY90 ATC
DIMENSIONS, APPROX.202" X 90" X 107"
WEIGHT, APPROX.17,500 LBS

Equipped With:

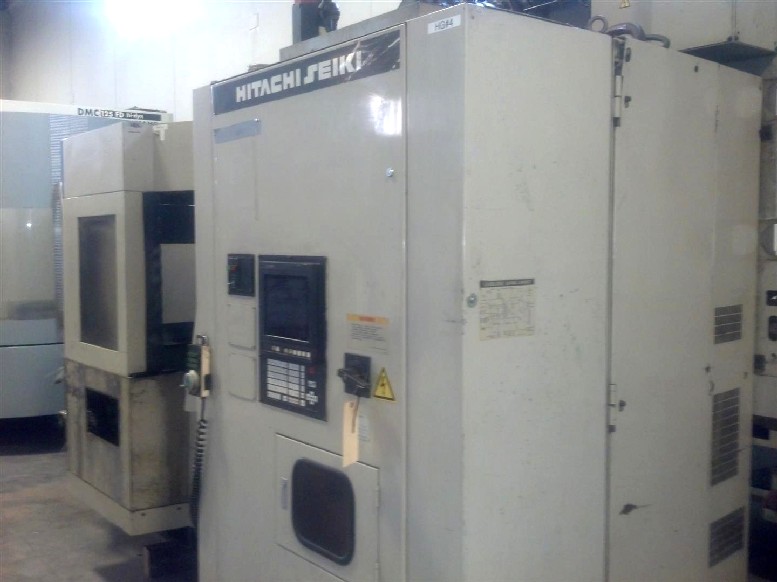

FANUC 15 MB CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
FULL 4TH AXIS PALLET INDEXING,
WITH HIGH-SPEED SPINDLE OPTION (12000 RPM),
CHIP CONVEYOR, COOLANT THRU SPINDLE PLUMBED/PREPPED,
HAND WHEEL PULSE GENERATOR, RIGID TAPPING,
TOOL PRESETTER, 90 POSITION TOOL CHANGER,
LARGER CAPACITY TOOL CHANGER (90),
COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
