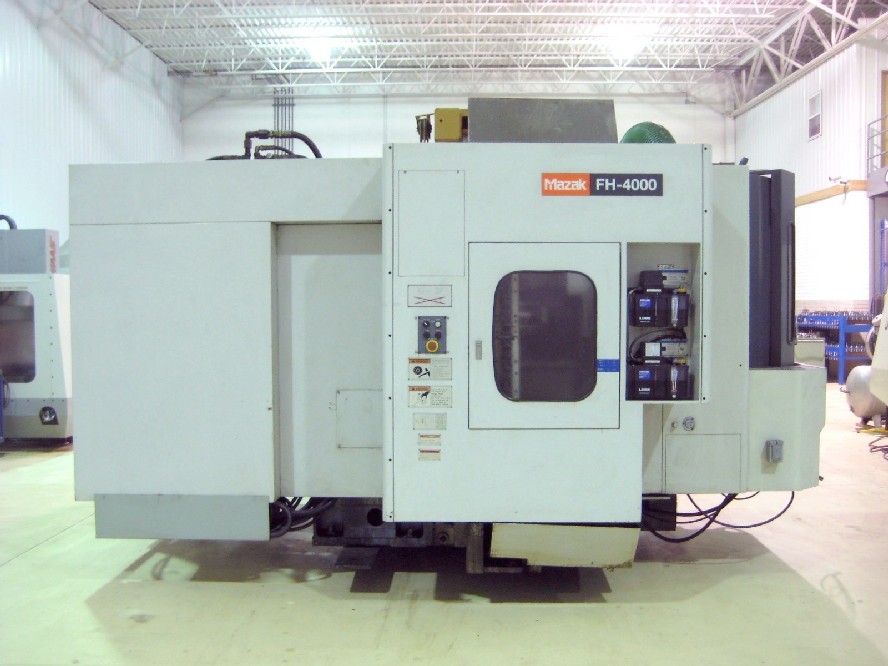

MAZAK FH4000 CNC HMC, 22 x 20 x 25, 12000 RPM, SPINDLE COOLANT,40 ATC, 30 HP, CAT40, FUSION PC 640M, '01

MAZAK FH4000 CNC HMC, 22 x 20 x 25, 12000 RPM, SPINDLE COOLANT,40 ATC, 30 HP, CAT40, FUSION PC 640M, '01

Stock Number: 4711


Click to view larger photo

Request A Quote On Our Stock Number: 4711 MAZAK FH4000 CNC HMC, 22 x 20 x 25, 12000 RPM, SPINDLE COOLANT,40 ATC, 30 HP, CAT40, FUSION PC 640M, '01Request a quote on stock# 4711
SpecificationDescription
MFG DATE / INSTALLED NEW2001 / 2002

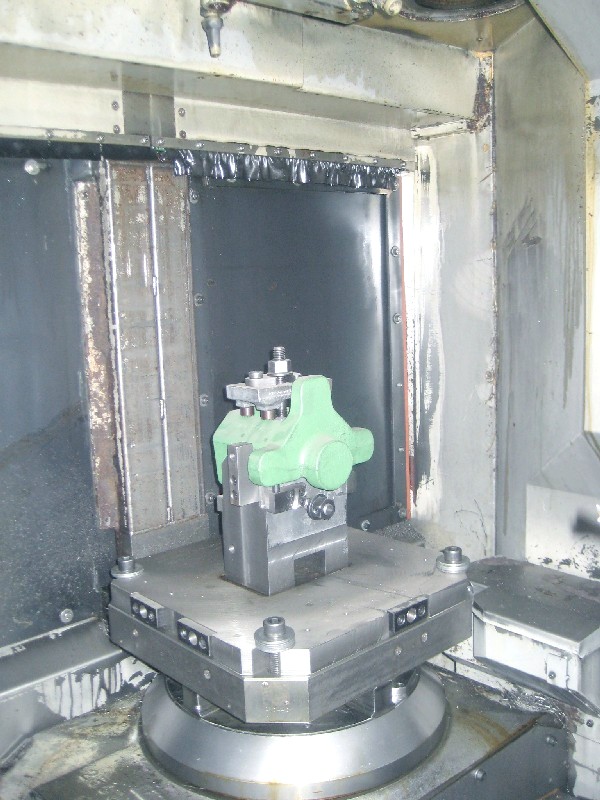

PALLET SIZE15.75" x 15.75"
MAXIMUM PALLET LOAD661 LBS
NUMBER OF PALLETS2
SPINDLE CENTER TO PALLET TOP3.93" - 24.01"
SPINDLE NOSE TO PALLET CENTER4.72" - 29.52"
X AXIS TRAVEL22.05"
Y AXIS TRAVEL20.07"
Z AXIS TRAVEL24.83"
B AXIS PALLET INDEXING1 DEGREE ROTATION
RAPID TRAVERSE RATE X, Y & Z AXIS1417 IPM
CUTTING FEED RATE0.01 - 1417 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS60 - 12,000 RPM
SPINDLE MOTOR30 HP
TOOL CHANGER CAPACITY40 STATION ATC
TOOL CHANGE TIME (CHIP-TO-CHIP)3.5 SECONDS
MAXIMUM TOOL WEIGHT17.6 LBS
MACHINE WEIGHT (APPROXIMATE)19,700 LBS w/ALL ACCESSORIES
FLOOR SPACE (APPROXIMATE)159" x 99" x 93"

Equipped With:

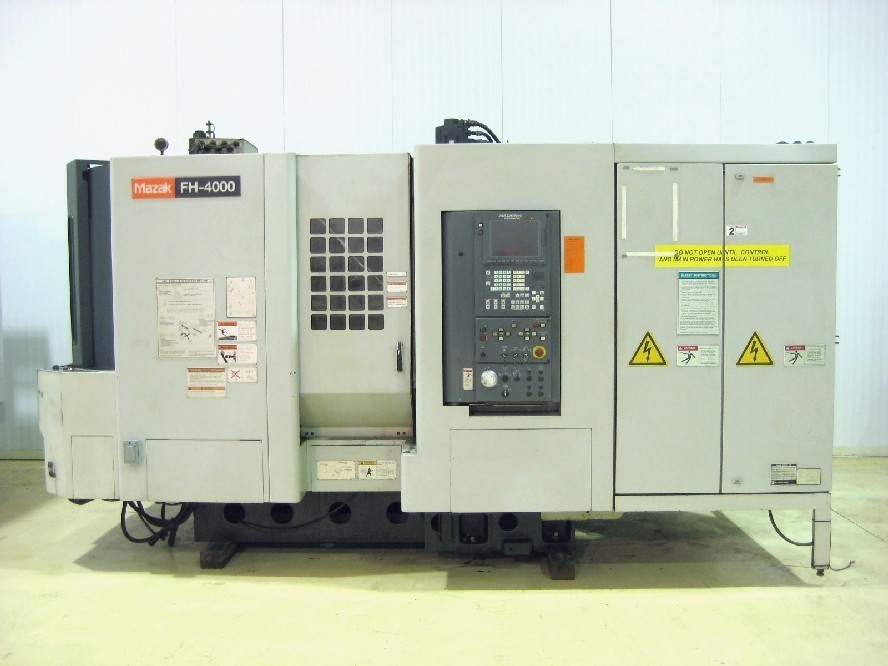

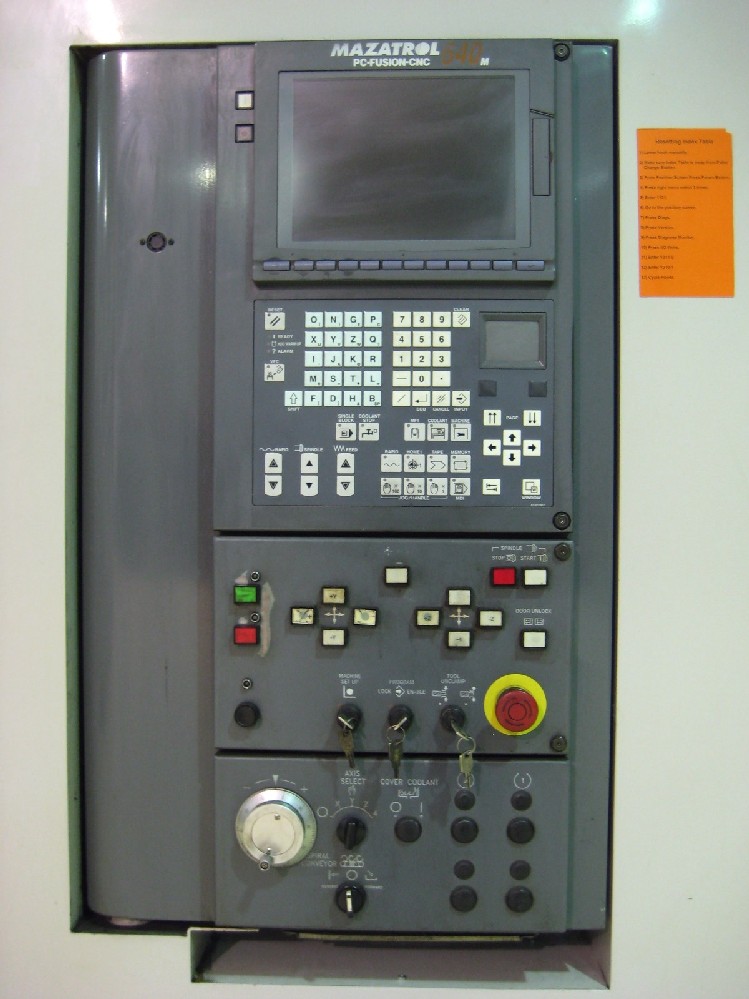

MAZATROL FUSION 640M CONVERSATIONAL COLOR CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
COOLANT THROUGH THE SPINDLE (213 PSI),
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),

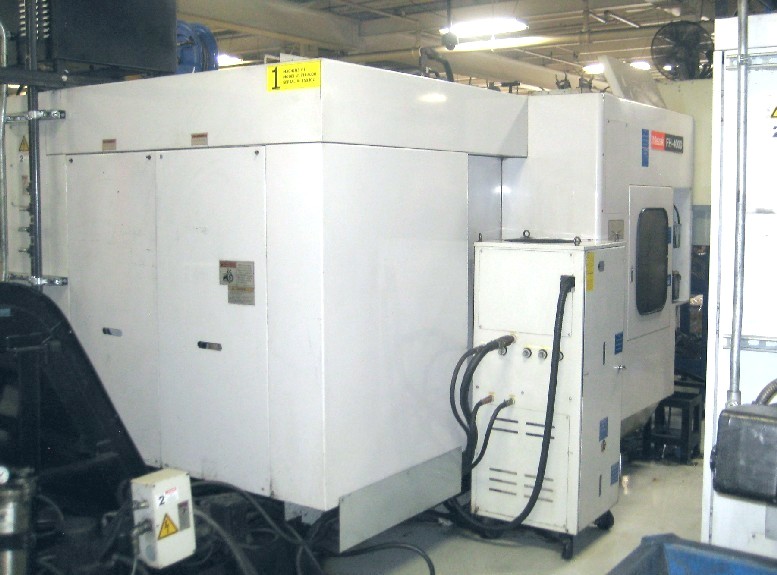

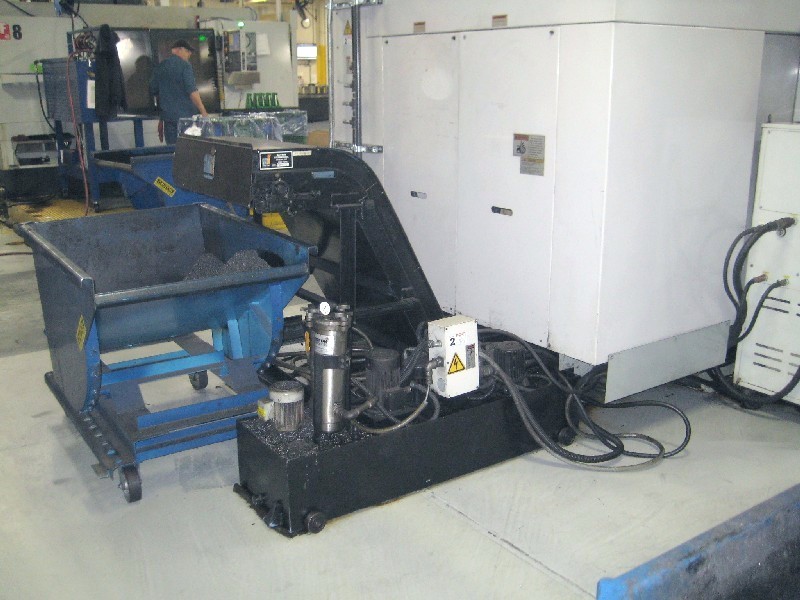

CHIP CONVEYOR (REAR EXIT), SPINDLE CHILLER & OIL COOLER,
SHOWER (CURTAIN TYPE) COOLANT SYSTEM (53 GPM),
ADAPTIVE FEEDRATE CONTROL, FLOOD COOLANT SYSTEM,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
