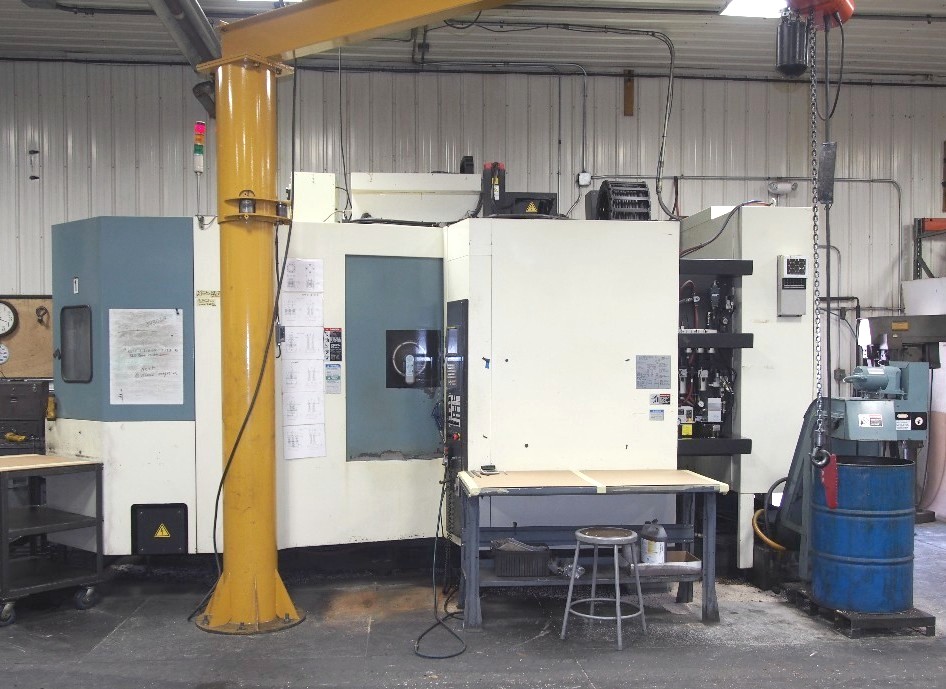

NIIGATA SPN-63 CNC HORIZONTAL MILL, 40 x 35 x 32, 40 HP, 60 ATC, 1575 ipm RAP, COOL THRU, 50 TAPER, PROBE, FANUC 16i, 00


NIIGATA SPN-63 CNC HORIZONTAL MILL, 40 x 35 x 32, 40 HP, 60 ATC, 1575 ipm RAP, COOL THRU, 50 TAPER, PROBE, FANUC 16i, 00

Stock Number: 4708



Click to view larger photo

Request A Quote On Our Stock Number: 4708 NIIGATA SPN-63 CNC HORIZONTAL MILL, 40 x 35 x 32, 40 HP, 60 ATC, 1575 ipm RAP, COOL THRU, 50 TAPER, PROBE, FANUC 16i, 00Request a quote on stock# 4708
SpecificationDescription
MFG DATE / INSTALLED NEW2000 / 2001
PALLET SIZE (630mm x 2)24.8" x 24.8"
MAXIMUM PALLET LOAD2,646 LBS
X AXIS TRAVEL39.4"
Y AXIS TRAVEL34.6"
Z AXIS TRAVEL31.5"
B AXIS INDEXING, PALLET1 DEG.
RAPID TRAVERSE RATE X, Y & Z AXIS1575 IPM
CUTTING FEED RATE0.01 - 1181 IPM
SPINDLE TAPERCAT 50
SPINDLE MOTOR (HIGH-TORQUE)40 HP
MAXIMUM SPINDLE TORQUE443 FT-LBS
SPINDLE SPEEDS6,000 RPM
TOOL CHANGER CAPACITY60 STATIONS
TOOL CHANGE TIME (TOOL-to-TOOL)1.4 SECONDS
DIMENSIONS, APPROX.251"L x 113"W x 126"H
WEIGHT, APPROX.38,600 LBS

Equipped With:

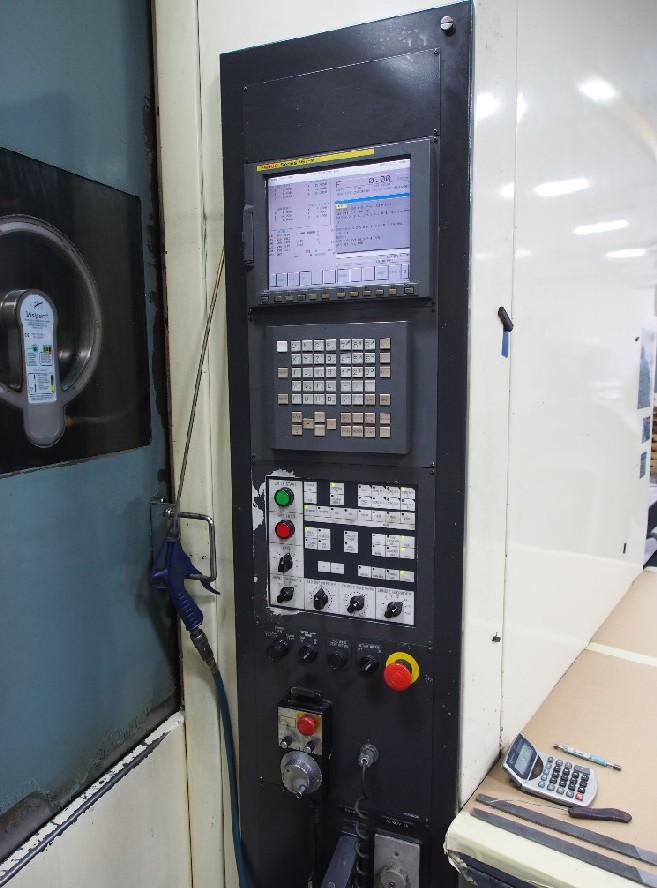

FANUC 16iM CNC CONTROL w/10.4" COLOR LCD SCREEN,
RS-232C PORT INTERFACE FOR DNC OPERATION,
COOLANT THROUGH-THE-SPINDLE (215 PSI RATING),
RENISHAW MP-4 AUTO TOOL LENGTH MEASUREMENT PROBE,
INNOVATIVE DOUBLE COLUMN DESIGN, 40 HP HIGH-TORQUE SPINDLE,
"SYNC-SWING" MOTION (SSM) ULTRA-FAST TOOL CHANGER (60),
NIIGATA HI-CONTOUR "I" HI-SPEED & HI-PRECISION MACHINING PKG,
(200) TOOL OFFSETS, (48) FIXTURE OFFSETS, COMMON VARIABLES (600),
2100 FT. EXTENDED MEMORY, BROKEN TOOL SYSTEM MONITORING,
SHOWER (CURTAIN TYPE) COOLANT SYSTEM, VISIPORT "SPIN WINDOW"

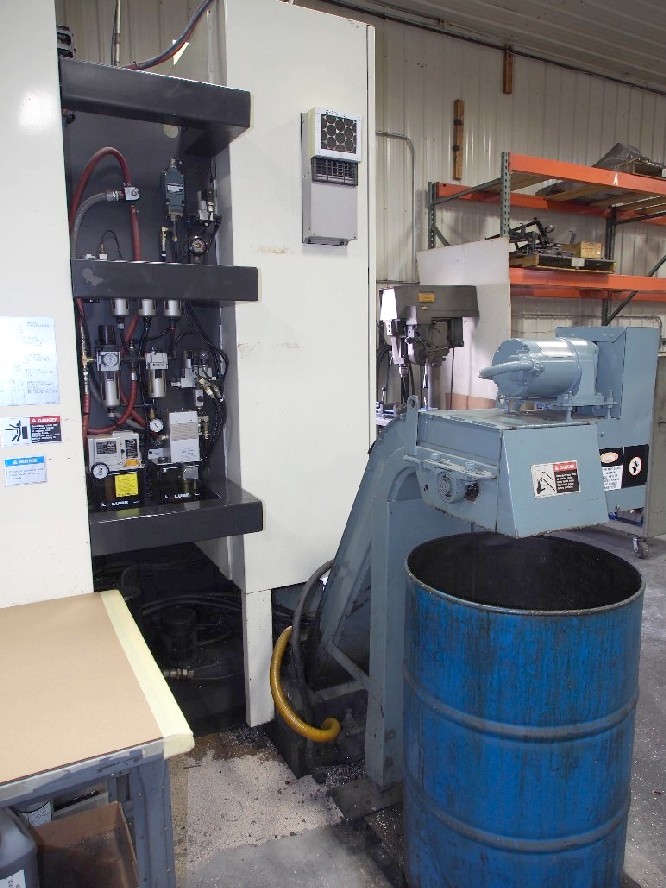

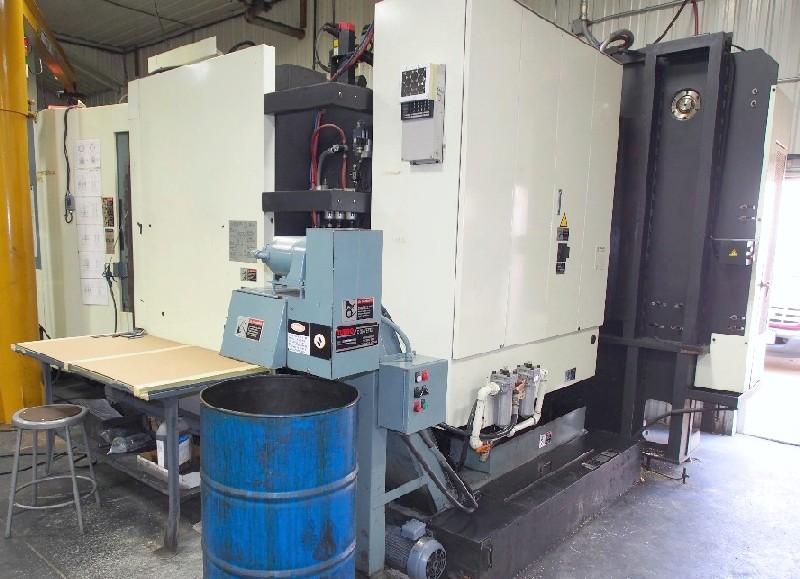

EXTERNAL TURBO CHIP CONVEYOR LIFT-UP TYPE (PROGRAMMABLE),
AIR BLAST SPINDLE FOR CHIP REMOVAL, 2 HIGH-TORQUE CHIP AUGERS,
DAIKIN SPINDLE CHILLER (SPINDLE OIL COOLING SYSTEM),
MISTBUSTER AIR FILTRATION SYSTEM, REMOTE JOG HANDLE,

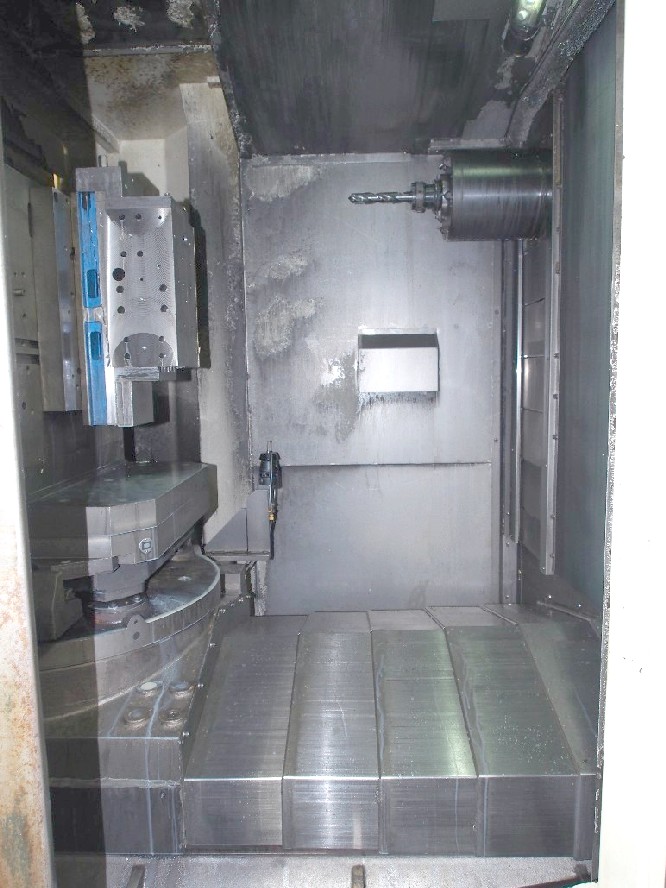

ROTARY STYLE TWIN PALLET CHANGER, RIGID TAPPING,
OIL & AIR SPINDLE BEARING LUBRICATION, SPECIAL CABINET COOLER,
**EXCELLENT CONDITION; WELL MAINTAINED w/RECORDS**
