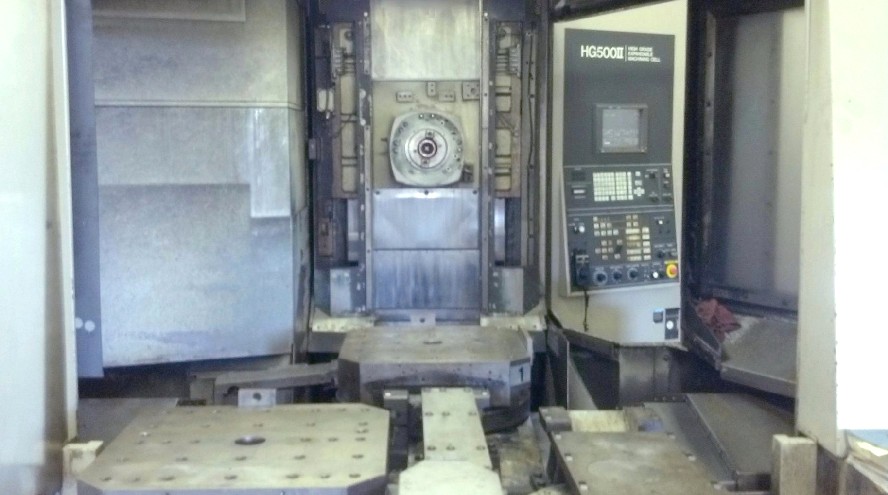

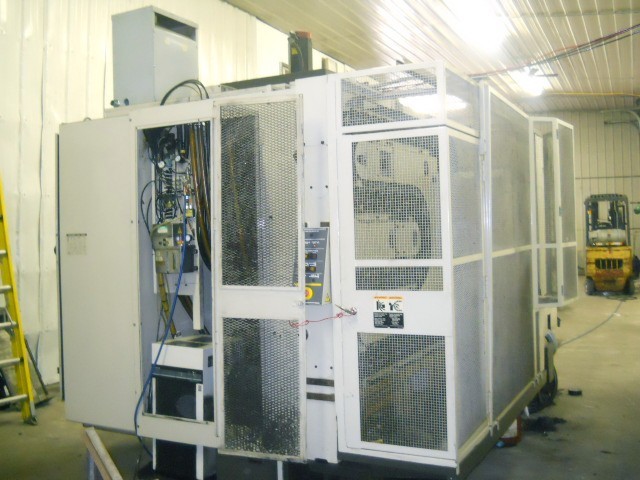

HITACHI SEIKI HG-500 II CNC HORIZONTAL, 28 x 27 x 24, CAT 50 TAPER, COOLANT THRU SPINDLE, 60 TOOL ATC, SIGMA FANUC, '99
Stock Number: 4707
Click to view larger photo
Request a quote on stock# 4707
| Specification | Description |
|---|
| MFG DATE / INSTALLED NEW | 1999 / 2000 |
| PALLET SIZE | 20" x 20" |
| MAXIMUM PALLET LOAD | 1800 LBS |
| NUMBER OF PALLETS | 2 |
| X AXIS TRAVEL | 28" |
| Y AXIS TRAVEL | 27" |
| Z AXIS TRAVEL | 24" |
| B AXIS INDEXING | 1 DEGREE |
| RAPID TRAVERSE RATE X, Y & Z AXIS | 900 IPM |
| CUTTING FEED RATE | 0.1 - 500 IPM |
| SPINDLE TAPER | CAT 50 |
| SPINDLE SPEED, MAX. | 6,000 RPM |
| SPINDLE MOTOR | 30 HP |
| TOOL CHANGER CAPACITY | 60 ATC |
| SPINDLE CENTER TO PALLET TOP | 0" - 27" |
| SPINDLE NOSE TO PALLET CENTER | 6" - 30" |
| DIMENSIONS, APPROX. | 190L" X 122W" X 108H" |
| WEIGHT, APPROX. | 24,600 LBS |
Equipped With:

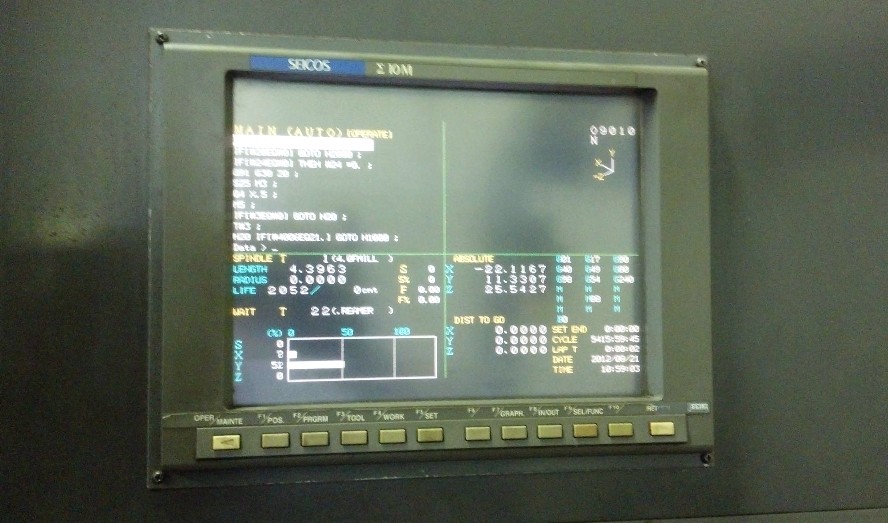

SEICOS SIGMA 10M (FANUC 16iM) CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
COOLANT THRU SPINDLE (300 psi), CHIP CONVEYOR,
FACTORY TOOL SETTER, RIGID TAPPING,

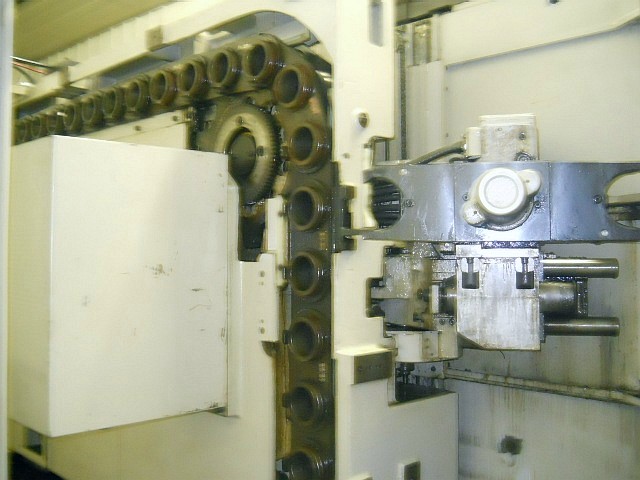

60 POSITION TOOL CHANGER, INTERNAL CHIP AUGERS,
SPINDLE CHILLER, MANUAL PULSE GENERATOR,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
***RIGID BOX WAY DESIGN***
****VIDEO AVAIALBLE UPON REQUEST****
*****MORE PHOTOS AVAILABLE UPON REQUEST*****
