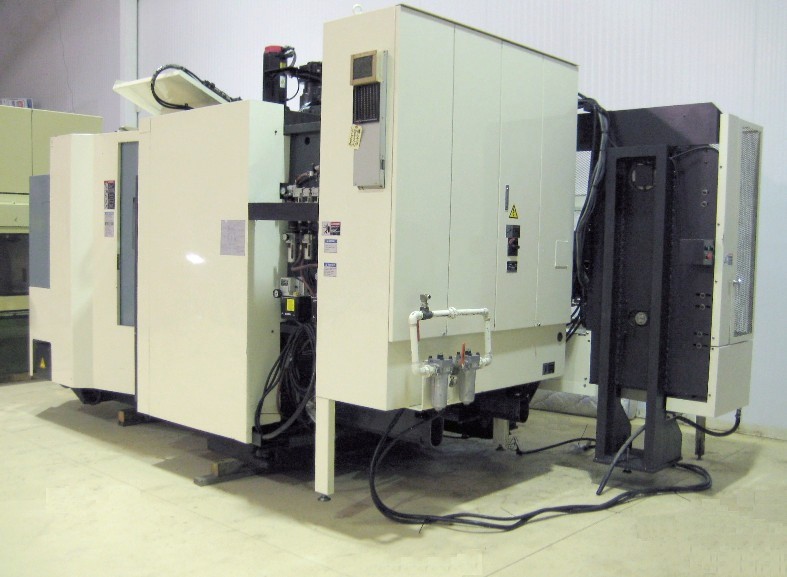

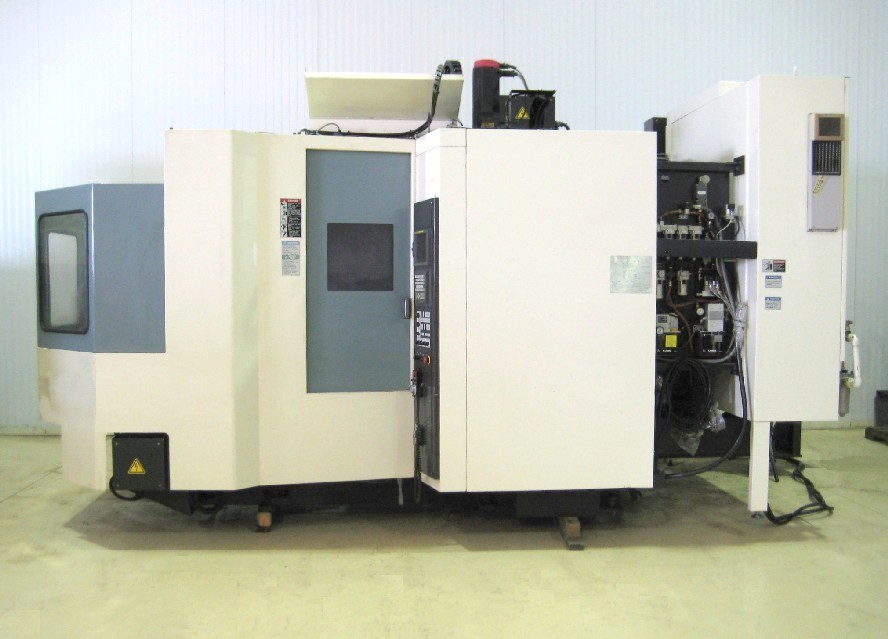

NIIGATA SPN-50 CNC HORIZONTAL MILL, FANUC 16iM, 29 x 29 x 29, 12000 RPM, 60 ATC, 1200 ipm CUT, COOL THRU, CHIP, '03
Stock Number: 4670
Click to view larger photo
Request a quote on stock# 4670
| Specification | Description |
|---|
| DATE OF MANUFACTURE | 2003 |
| PALLET SIZE (500mm X 2) | 19.7" x 19.7" |
| MAXIMUM PALLET LOAD | 1,320 LBS |
| PALLET CHANGE TIME | 7.5 SECONDS |
| SPINDLE CENTER TO PALLET TOP | 5.9" - 35.4" |
| SPINDLE NOSE TO PALLET CENTER | 5.9" - 35.4" |
| X AXIS TRAVEL | 29.5" |
| Y AXIS TRAVEL | 29.5" |
| Z AXIS TRAVEL | 29.5" |
| B AXIS INDEXING | 1 DEG. |
| RAPID TRAVERSE RATE X, Y & Z AXIS | 1575 IPM |
| CUTTING FEED RATE | 0.01 - 1181 IPM |
| SPINDLE TAPER | CAT 50 |
| SPINDLE SPEEDS | 12,000 RPM |
| SPINDLE MOTOR | 40 HP |
| MAXIMUM SPINDLE TORQUE | 258 FT-LBS |
| TOOL CHANGER CAPACITY | 60 STATIONS |
| TOOL CHANGE TIME (TOOL TO TOOL) | 1.4 SECONDS |
| DIMENSIONS, APPROX. | 100" x 231" x 115" |
| WEIGHT, APPROX. | 30,000 LBS |
Equipped With:
FANUC 16iM CNC CONTROL WITH 10.4" LCD SCREEN,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
COOLANT THROUGH THE SPINDLE (215 PSI RATING),
RENISHAW MP-4 AUTO TOOL LENGTH MEASUREMENT,

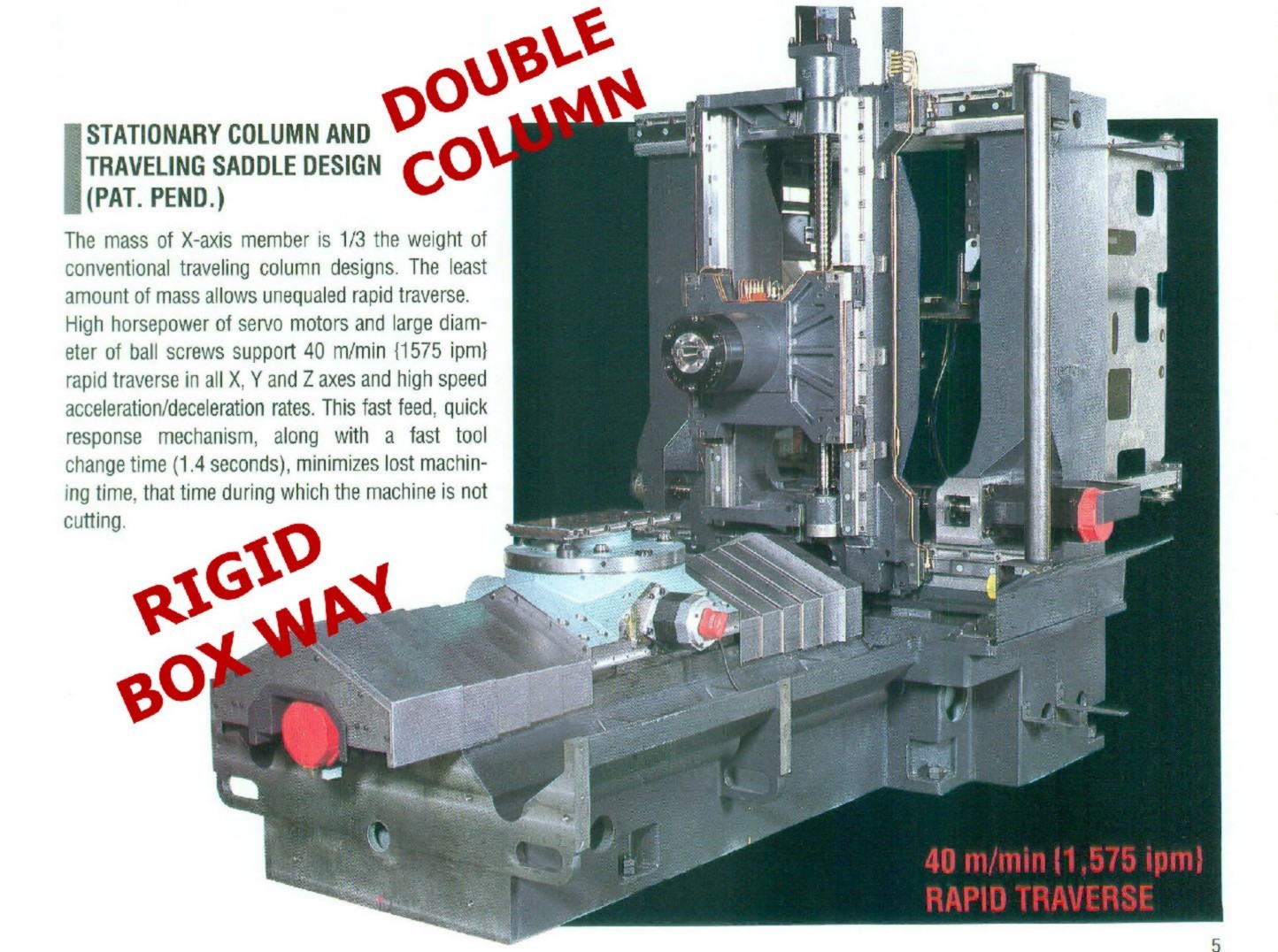

INNOVATIVE DOUBLE COLUMN DESIGN, SPINDLE CHILLER,

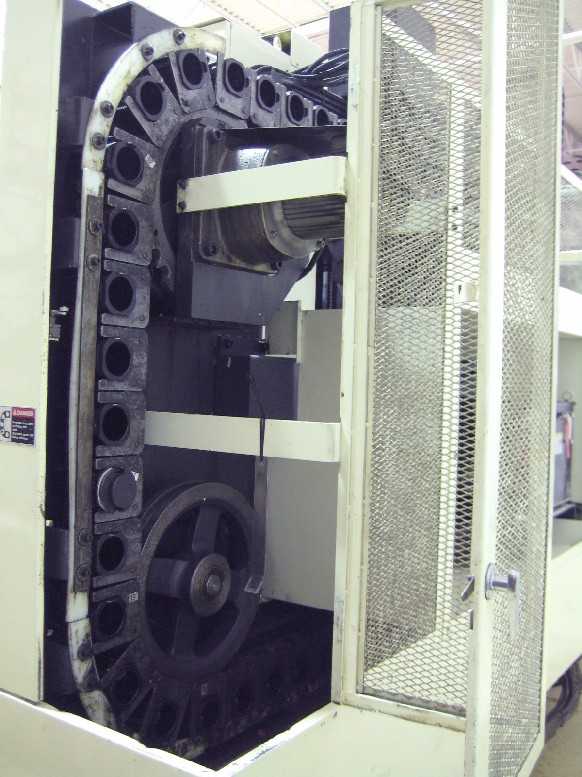

SYNC-SWING MOTION (SSM) ULTRA-FAST TOOL CHANGER,
(48) FIXTURE OFFSETS, COMMON VARIABLES (600),
1050' EXTENDED MEMORY, SPECIAL CABINET COOLER,
BROKEN TOOL SYSTEM AND SPECIAL BRACKET,
MANUAL PULSE GENERATOR, FLOOD/CURTAIN COOLANT SYSTEM,
EXTERNAL LIFT-UP TYPE EXTERNAL CHIP CONVEYOR,
DAIKIN SPINDLE CHILLER (SPINDLE OIL COOLING SYSTEM),
**EXCELLENT CONDITION; WELL MAINTAINED w/RECORDS**
