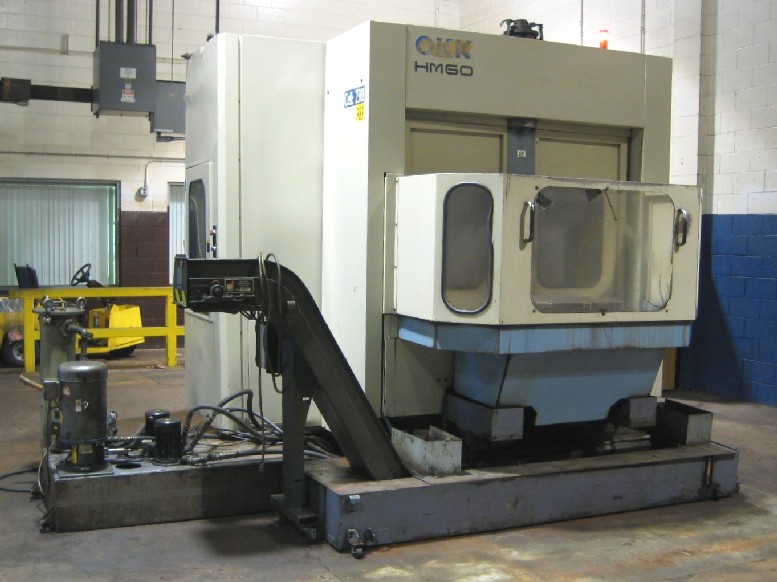

CNC HORIZONTAL MACHINING CENTERS: OKK HM60 CNC HORIZONTAL MILL, FANUC 16i-M, 600mm PALLETS, 30 x 29 x 31, 1 DEG, 8000 RPM, COOL-THRU, 40 ATC, '99 (4612)

OKK HM60 CNC HORIZONTAL MILL, FANUC 16i-M, 600mm PALLETS, 30 x 29 x 31, 1 DEG, 8000 RPM, COOL-THRU, 40 ATC, '99 (4612)

Stock Number: 4612

CNC HORIZONTAL MACHINING CENTERS: OKK HM60 CNC HORIZONTAL MILL, FANUC 16i-M, 600mm PALLETS, 30 x 29 x 31, 1 DEG, 8000 RPM, COOL-THRU, 40 ATC, '99 (4612), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: OKK HM60 CNC HORIZONTAL MILL, FANUC 16i-M, 600mm PALLETS, 30 x 29 x 31, 1 DEG, 8000 RPM, COOL-THRU, 40 ATC, '99 (4612), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: OKK HM60 CNC HORIZONTAL MILL, FANUC 16i-M, 600mm PALLETS, 30 x 29 x 31, 1 DEG, 8000 RPM, COOL-THRU, 40 ATC, '99 (4612), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: OKK HM60 CNC HORIZONTAL MILL, FANUC 16i-M, 600mm PALLETS, 30 x 29 x 31, 1 DEG, 8000 RPM, COOL-THRU, 40 ATC, '99 (4612), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: OKK HM60 CNC HORIZONTAL MILL, FANUC 16i-M, 600mm PALLETS, 30 x 29 x 31, 1 DEG, 8000 RPM, COOL-THRU, 40 ATC, '99 (4612), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: OKK HM60 CNC HORIZONTAL MILL, FANUC 16i-M, 600mm PALLETS, 30 x 29 x 31, 1 DEG, 8000 RPM, COOL-THRU, 40 ATC, '99 (4612), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: OKK HM60 CNC HORIZONTAL MILL, FANUC 16i-M, 600mm PALLETS, 30 x 29 x 31, 1 DEG, 8000 RPM, COOL-THRU, 40 ATC, '99 (4612), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: OKK HM60 CNC HORIZONTAL MILL, FANUC 16i-M, 600mm PALLETS, 30 x 29 x 31, 1 DEG, 8000 RPM, COOL-THRU, 40 ATC, '99 (4612), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4612 CNC HORIZONTAL MACHINING CENTERS: OKK HM60 CNC HORIZONTAL MILL, FANUC 16i-M, 600mm PALLETS, 30 x 29 x 31, 1 DEG, 8000 RPM, COOL-THRU, 40 ATC, '99 (4612)Request a quote on stock# 4612
SpecificationDescription
MANUFACTURED NEW1999

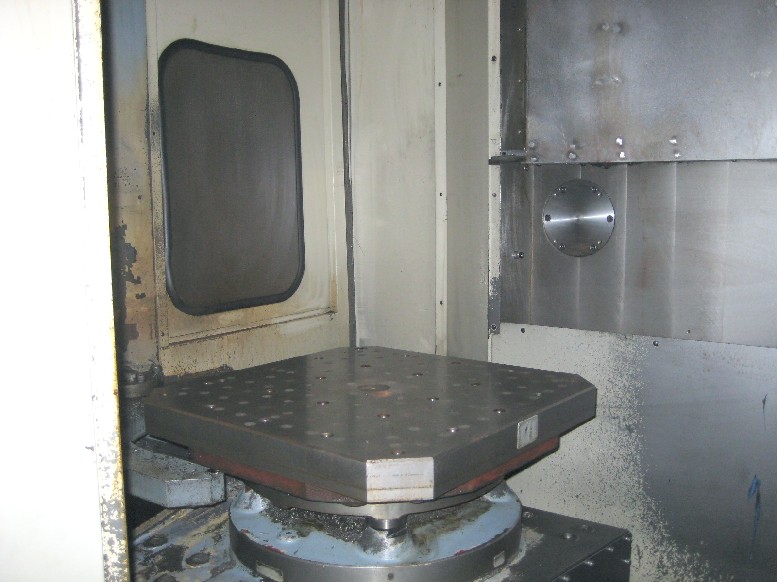

PALLET SIZE24" x 24"
MAXIMUM PALLET LOAD1543 LBS
NUMBER OF PALLETS2
PALLET CHANGE TIME6 SECONDS
X AXIS TRAVEL29.92"
Y AXIS TRAVEL28.74"
Z AXIS TRAVEL31.49"
SPINDLE CENTER TO PALLET TOP1.97" TO 30.7"
SPINDLE NOSE TO PALLET CENTER5.91" TO 37.4"
B AXIS INDEXING1 DEG
RAPID TRAVERSE RATE X, Y & Z AXIS1574 IPM
CUTTING FEED RATE0.04 - 1574 IPM

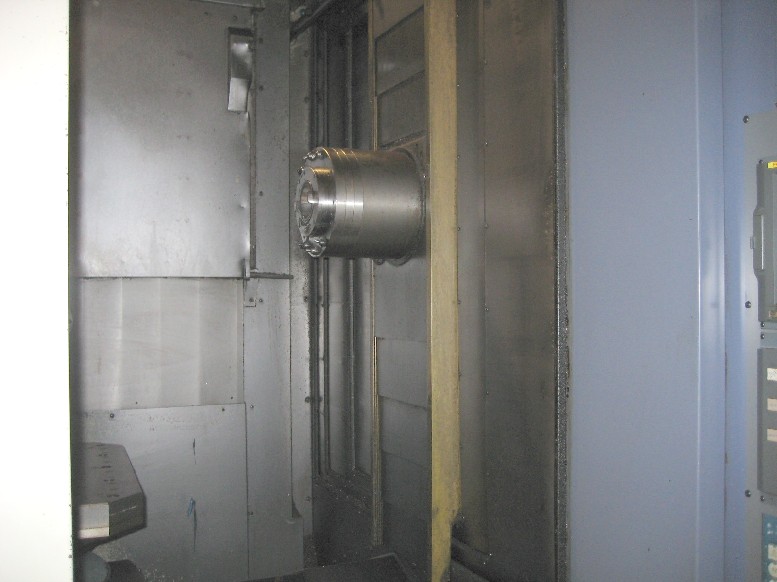

SPINDLE TAPERCAT 50
SPINDLE SPEEDS35 - 8,000 RPM
SPINDLE MOTOR (2 SPEED GEARED)30 HP
TOOL CHANGER CAPACITY40 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL)1.9 SECONDS
TOOL CHANGE TIME (CHIP TO CHIP)5 SECONDS
MAXIMUM TOOL WEIGHT44.1 LBS
MACHINE WEIGHT (APPROXIMATE)31,000 LBS
FLOOR SPACE (APPROXIMATE)120" x 169" x123"

Equipped With:

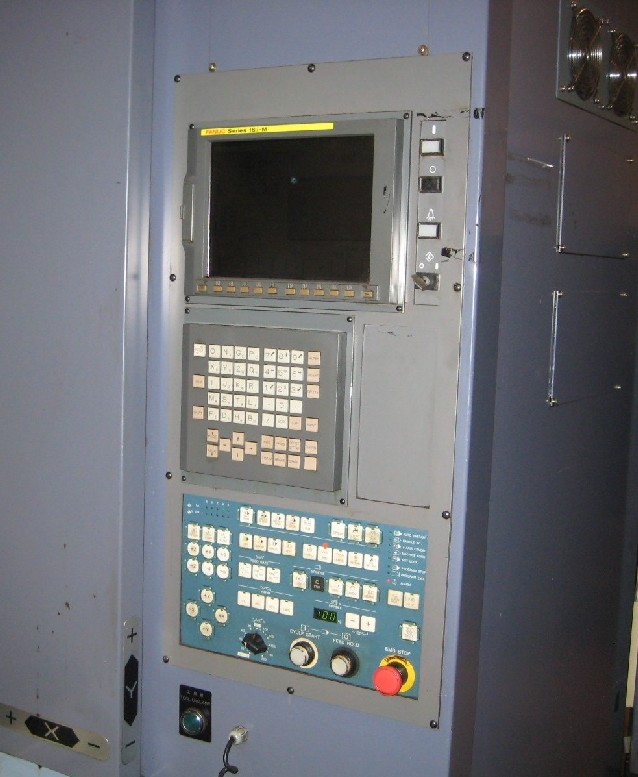

FANUC 16i-M CNC CONTROL WITH 9" LCD SCREEN,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
COOLANT THROUGH THE SPINDLE (1000 PSI HIGH PRESSURE),
FLOOD COOLANT SYSTEM, REMOTE PULSE GENERATOR WHEEL,
TURBO EXTERNAL LIFT-UP TYPE CHIP CONVEYOR,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
