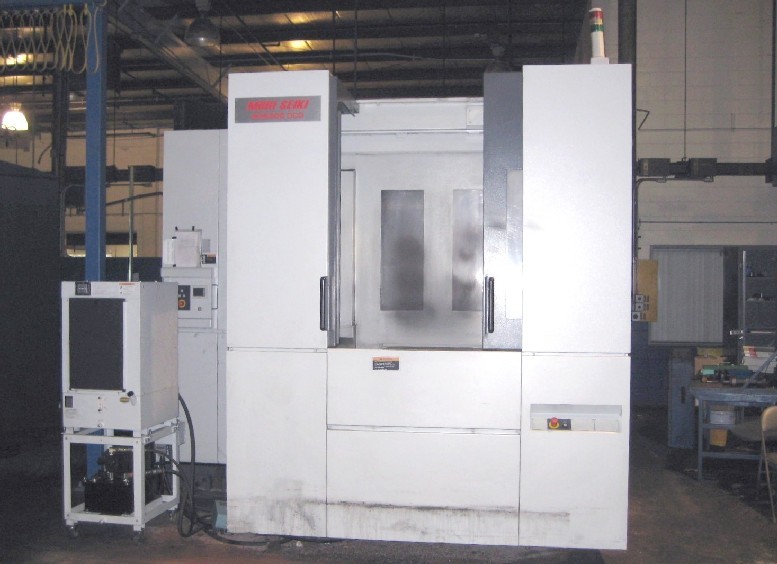

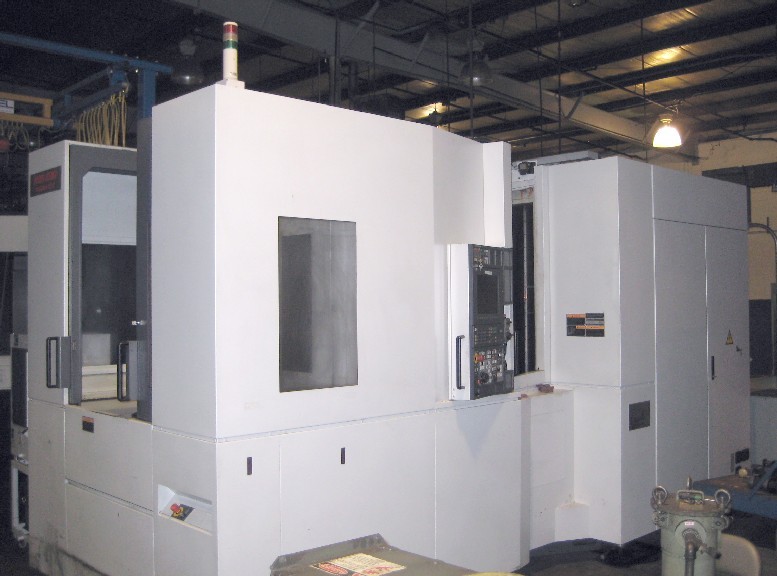

MORI SEIKI NH-6300 DCG CNC HORIZONTAL MILL, 25 IN. PALLET, FANUC MSX 701, 10000 RPM, COOLANT THRU SPINDLE, 60 TOOLS, '07
Stock Number: 4593
Click to view larger photo
Request a quote on stock# 4593
| Specification | Description |
|---|
| MFG DATE | 11/2007 |

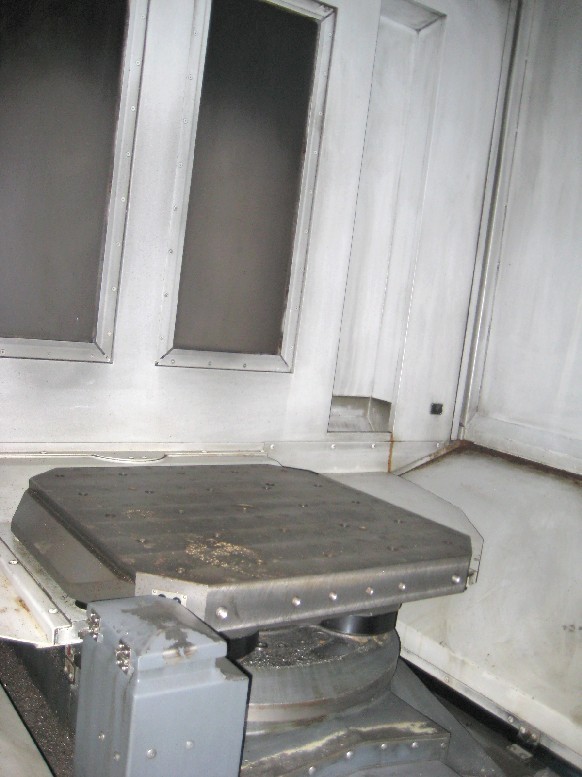

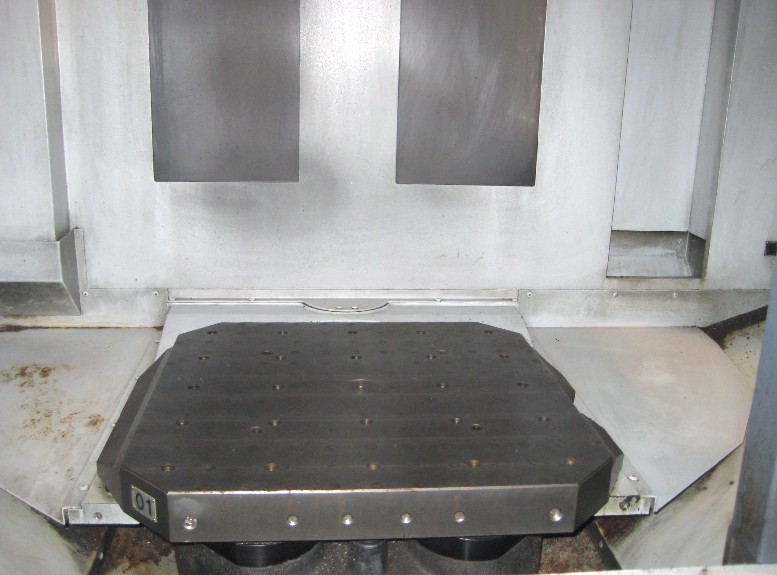

| PALLET SIZE | 24.8" x 24.8" |
| MAXIMUM PALLET LOAD | 2,640 LBS |
| NUMBER OF PALLETS | 2 |
| SPINDLE CENTER TO PALLET TOP | 3.9" - 35.4" |
| SPINDLE NOSE TO PALLET CENTER | 3.9" - 42.5" |
| X AXIS TRAVEL | 35.4" |
| Y AXIS TRAVEL | 31.5" |
| Z AXIS TRAVEL | 38.6" |
| B AXIS INDEXING | 1 DEG. |

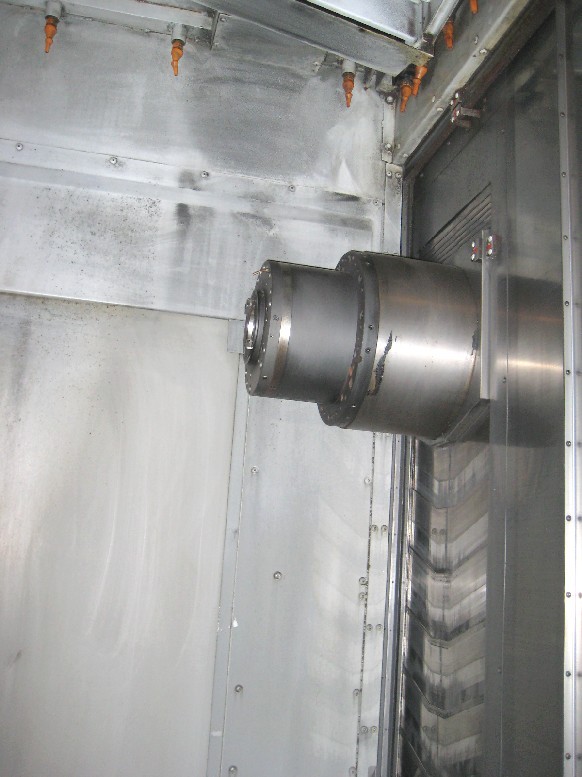

| SPINDLE TAPER | CAT 50 |
| SPINDLE SPEED, MAX. | 10,000 RPM |
| SPINDLE MOTOR | 40 HP |
| TOOL CHANGER CAPACITY | 60 STATION ATC |
| TOOL CHANGE TIME (TOOL TO TOOL) | 2.2 SECONDS |
| MAXIMUM TOOL WEIGHT | 66 LBS |
| MAXIMUM WORKPIECE SIZE | 41.3" x 51.1" |
| WEIGHT, APPROX. | 49,000 LBS |
Equipped With:

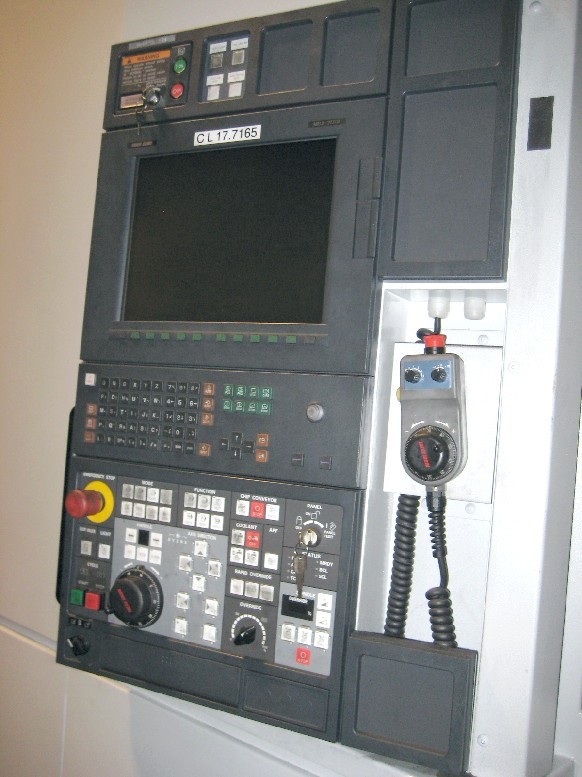

FANUC MSX-701 III CONTROL,
RS-232 PORT INTERFACE FOR DNC OPERATION,
THRU-SPINDLE COOLANT,
60 TOOL ATC, RIGID TAPPING,
CUSTOM MACRO, MAPPS II,
TOOL LIFE MANAGEMENT,
FLOOD COOLANT SYSTEM,
INTERNAL CHIP AUGER,

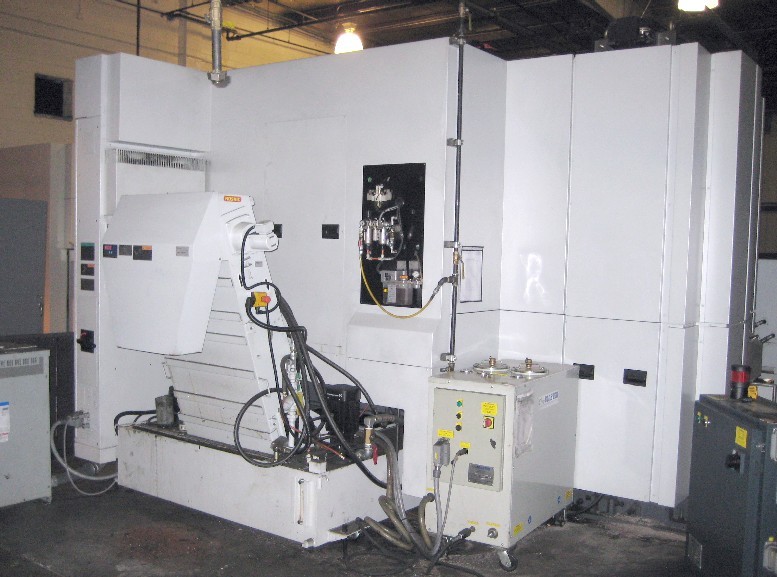

EXTERNAL LIFT UP CHIP CONVEYOR,

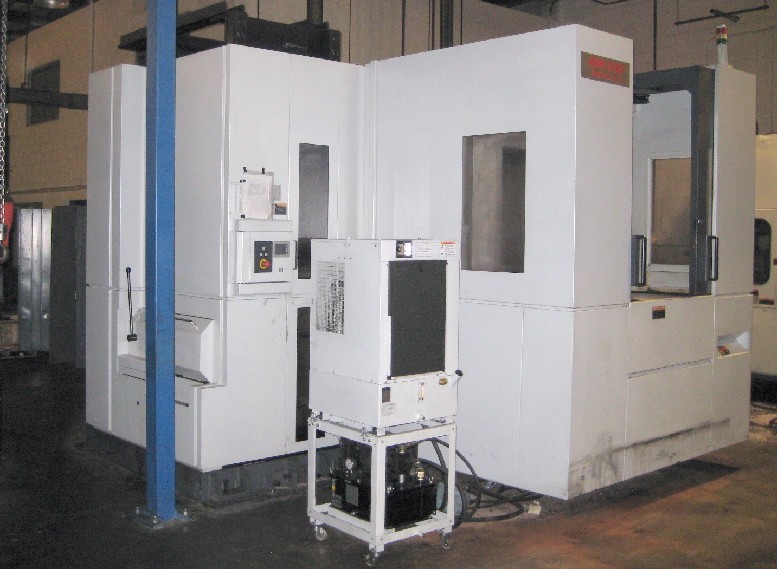

SPINDLE CHILLER,
REMOTE JOG HAND WHEEL,
"DCG" is Mori Seiki's new "Driven at the Center of Gravity" design using
Twin Drives & Two Ball Screws for their High Speed & High Precision Lineup;
delivering Less Vibration and Longer Tool Life.
