CNC HORIZONTAL MACHINING CENTERS: MAZAK ULTRA 650 CNC HORIZONTAL MILL, 25 IN.PALLETS, FUSION 640M, 40 x 31 x 31 TRAVELS, 80 TOOLS, CAT 50, COOL THRU, '99

MAZAK ULTRA 650 CNC HORIZONTAL MILL, 25 IN.PALLETS, FUSION 640M, 40 x 31 x 31 TRAVELS, 80 TOOLS, CAT 50, COOL THRU, '99

Stock Number: 4589

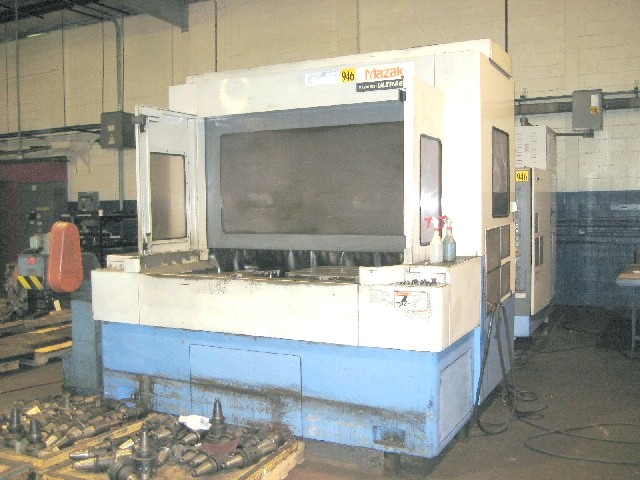

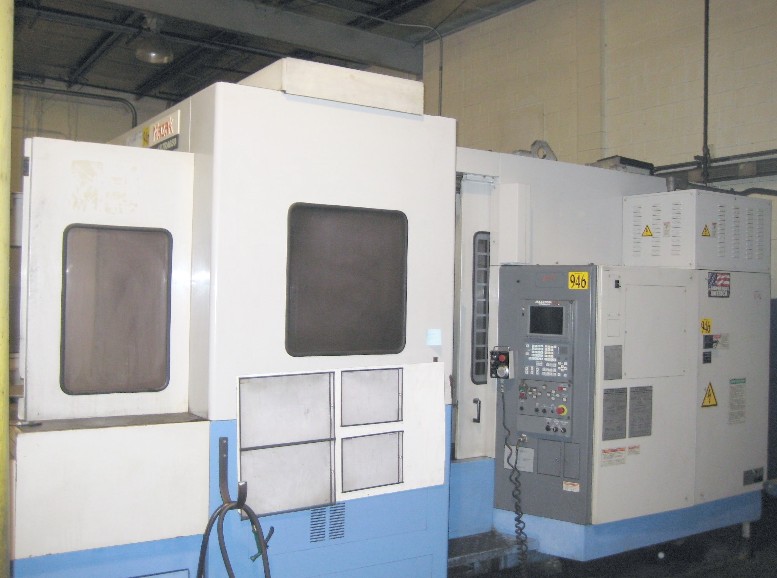

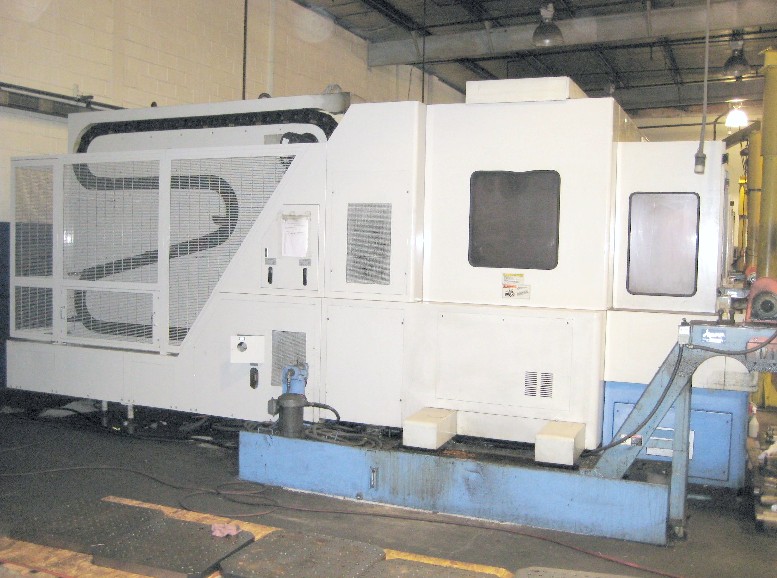

CNC HORIZONTAL MACHINING CENTERS: MAZAK ULTRA 650 CNC HORIZONTAL MILL, 25 IN.PALLETS, FUSION 640M, 40 x 31 x 31 TRAVELS, 80 TOOLS, CAT 50, COOL THRU, '99, Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAZAK ULTRA 650 CNC HORIZONTAL MILL, 25 IN.PALLETS, FUSION 640M, 40 x 31 x 31 TRAVELS, 80 TOOLS, CAT 50, COOL THRU, '99, Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAZAK ULTRA 650 CNC HORIZONTAL MILL, 25 IN.PALLETS, FUSION 640M, 40 x 31 x 31 TRAVELS, 80 TOOLS, CAT 50, COOL THRU, '99, Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAZAK ULTRA 650 CNC HORIZONTAL MILL, 25 IN.PALLETS, FUSION 640M, 40 x 31 x 31 TRAVELS, 80 TOOLS, CAT 50, COOL THRU, '99, Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAZAK ULTRA 650 CNC HORIZONTAL MILL, 25 IN.PALLETS, FUSION 640M, 40 x 31 x 31 TRAVELS, 80 TOOLS, CAT 50, COOL THRU, '99, Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAZAK ULTRA 650 CNC HORIZONTAL MILL, 25 IN.PALLETS, FUSION 640M, 40 x 31 x 31 TRAVELS, 80 TOOLS, CAT 50, COOL THRU, '99, Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAZAK ULTRA 650 CNC HORIZONTAL MILL, 25 IN.PALLETS, FUSION 640M, 40 x 31 x 31 TRAVELS, 80 TOOLS, CAT 50, COOL THRU, '99, Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAZAK ULTRA 650 CNC HORIZONTAL MILL, 25 IN.PALLETS, FUSION 640M, 40 x 31 x 31 TRAVELS, 80 TOOLS, CAT 50, COOL THRU, '99, Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4589 CNC HORIZONTAL MACHINING CENTERS: MAZAK ULTRA 650 CNC HORIZONTAL MILL, 25 IN.PALLETS, FUSION 640M, 40 x 31 x 31 TRAVELS, 80 TOOLS, CAT 50, COOL THRU, '99Request a quote on stock# 4589
SpecificationDescription
DATE OF MANUFACTURE1999

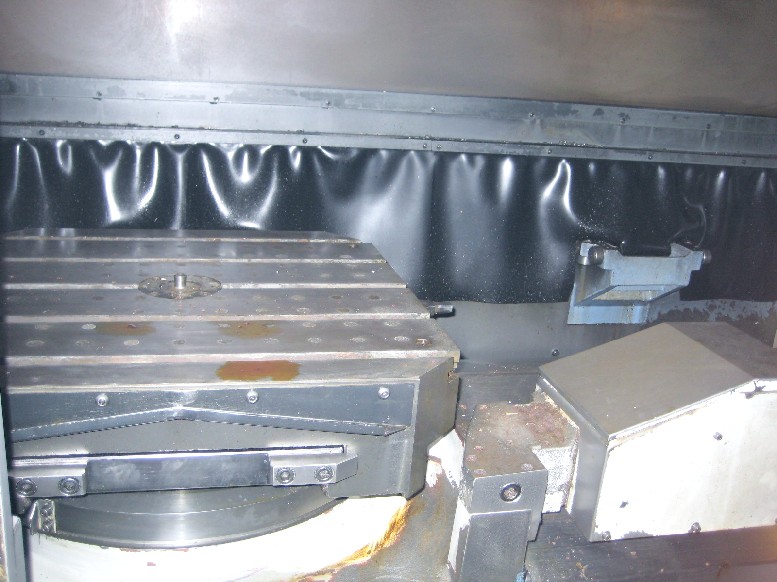

PALLET SIZE24.8" x 24.8"
MAXIMUM PALLET LOAD2,999 LBS
NUMBER OF PALLETS2
SPINDLE CENTER TO PALLET TOP2" - 33.5"
SPINDLE NOSE TO PALLET CENTER6.69" - 37.72"
X AXIS TRAVEL40"
Y AXIS TRAVEL31.5"
Z AXIS TRAVEL31.02"
B AXIS INDEXING1 DEG
RAPID TRAVERSE RATE X & Y AXIS1000 IPM
RAPID TRAVERSE RATE Z AXIS787 IPM
CUTTING FEED RATE0.01 - 1000 IPM
SPINDLE TAPERCAT 50
SPINDLE SPEEDS35 - 7,000 RPM
SPINDLE MOTOR35 HP

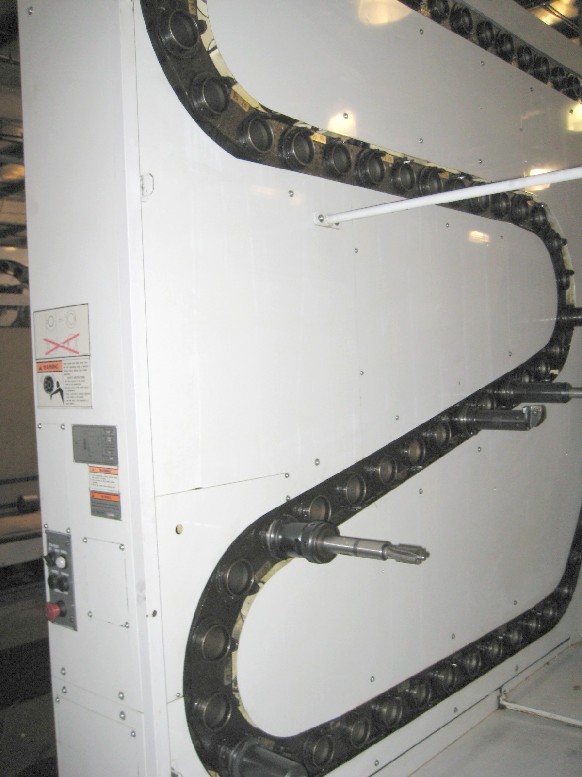

TOOL CHANGER CAPACITY80 STATION ATC
MAXIMUM TOOL WEIGHT59.4 LBS
MAXIMUM TOOL LENGTH19.7"
MACHINE WEIGHT (APPROX.)39,700 LBS
FLOOR SPACE (APPROX.)141" x 204" x 127"

Equipped With:

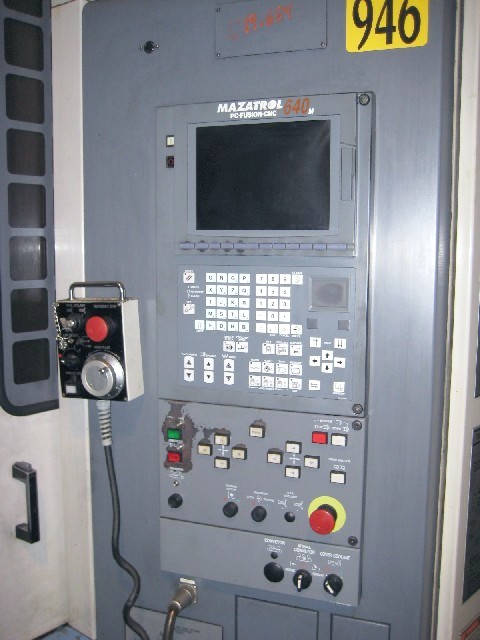

MAZATROL PC FUSION 640M CONVERSATIONAL CNC CTRL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
COOLANT THROUGH THE SPINDLE (220 PSI RATING),
TOOL LIFE MANAGEMENT, TOOL BREAKAGE DETECTION,
TOOL LENGTH MEASUREMENT, TOOL LIFE MONITORING,
REMOTE PULSE GENERATOR (REMOTE JOG HANDLE/WHEEL),
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
FLOOD COOLANT SYSTEM,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
