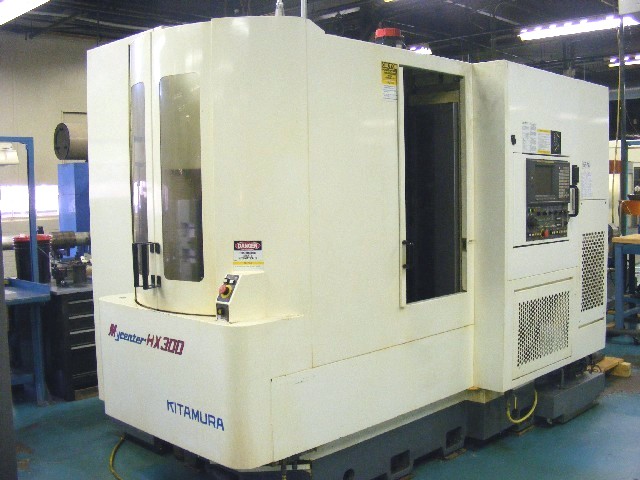

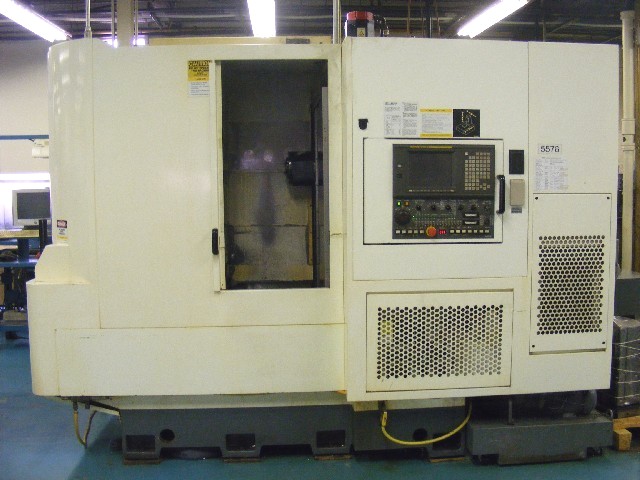

CNC HORIZONTAL MACHINING CENTERS: KITAMURA MYCENTER HX-300 CNC MILL, FANUC 16iM, 20 x 20 x 16, 0.001 DEG., 10000 RPM, COOL-THRU, '00 (4541)

KITAMURA MYCENTER HX-300 CNC MILL, FANUC 16iM, 20 x 20 x 16, 0.001 DEG., 10000 RPM, COOL-THRU, '00 (4541)

Stock Number: 4541

CNC HORIZONTAL MACHINING CENTERS: KITAMURA MYCENTER HX-300 CNC MILL, FANUC 16iM, 20 x 20 x 16, 0.001 DEG., 10000 RPM, COOL-THRU, '00 (4541), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: KITAMURA MYCENTER HX-300 CNC MILL, FANUC 16iM, 20 x 20 x 16, 0.001 DEG., 10000 RPM, COOL-THRU, '00 (4541), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: KITAMURA MYCENTER HX-300 CNC MILL, FANUC 16iM, 20 x 20 x 16, 0.001 DEG., 10000 RPM, COOL-THRU, '00 (4541), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: KITAMURA MYCENTER HX-300 CNC MILL, FANUC 16iM, 20 x 20 x 16, 0.001 DEG., 10000 RPM, COOL-THRU, '00 (4541), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: KITAMURA MYCENTER HX-300 CNC MILL, FANUC 16iM, 20 x 20 x 16, 0.001 DEG., 10000 RPM, COOL-THRU, '00 (4541), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: KITAMURA MYCENTER HX-300 CNC MILL, FANUC 16iM, 20 x 20 x 16, 0.001 DEG., 10000 RPM, COOL-THRU, '00 (4541), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: KITAMURA MYCENTER HX-300 CNC MILL, FANUC 16iM, 20 x 20 x 16, 0.001 DEG., 10000 RPM, COOL-THRU, '00 (4541), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4541 CNC HORIZONTAL MACHINING CENTERS: KITAMURA MYCENTER HX-300 CNC MILL, FANUC 16iM, 20 x 20 x 16, 0.001 DEG., 10000 RPM, COOL-THRU, '00 (4541)Request a quote on stock# 4541
SpecificationDescription
INSTALLED NEW2000

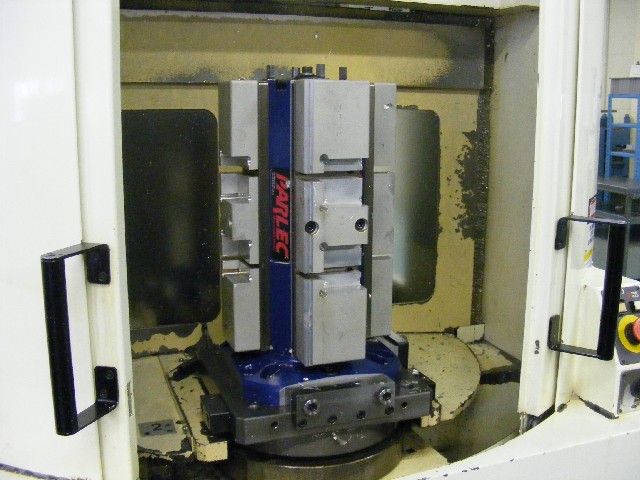

PALLET SIZE (2)12" x 12"
MAXIMUM PALLET LOAD551 LBS
NUMBER OF PALLETS2
SPINDLE CENTER TO PALLET TOP1.6" - 21.7"
SPINDLE NOSE TO PALLET CENTER3.9" - 19.6"
X-AXIS TRAVEL20.1"
Y-AXIS TRAVEL20.1"
Z-AXIS TRAVEL15.7"
B-AXIS INDEXING (FULL 4TH)0.001 DEGREE
SPINDLE SPEEDS60 - 10,000 RPM
SPINDLE MOTOR (2 SPEED GEARED)20 HP
SPINDLE TAPERCAT 40
RAPID TRAVERSE RATE X, Y & Z AXIS1417 IPM
CUTTING FEED RATE0.1 - 393 IPM

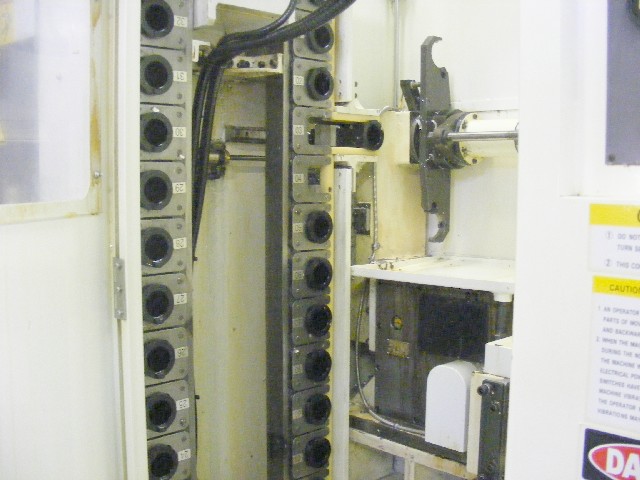

TOOL CHANGER CAPACITY40 STATION ATC
TOOL CHANGE TIME (TOOL-TO-TOOL)1.2 SECONDS
MAXIMUM TOOL WEIGHT22 LBS
DIMENSIONS (APPROXIMATE)86" x 150" x 101" H
WEIGHT (APPROXIMATE)16,000 LBS

Equipped With:

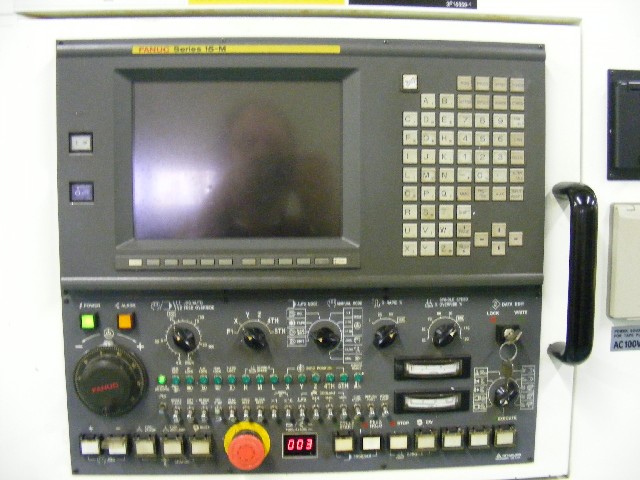

FANUC 16iM CNC CONTROL WITH 10.4" LCD SCREEN,
RS-232 PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
COOLANT THROUGH THE SPINDLE (300 PSI RATING),
OPTIONAL 10000 RPM GEARED SPINDLE, FLOOD COOLANT,
REMOTE PULSE GENERATOR, INTERNAL HARD DRIVE,
DAIKIN SPINDLE CHILLER (SPINDLE OIL COOLING SYSTEM),
FULL GUARDING, INTERNAL CHIP AUGER, SPINDLE CHILLER,

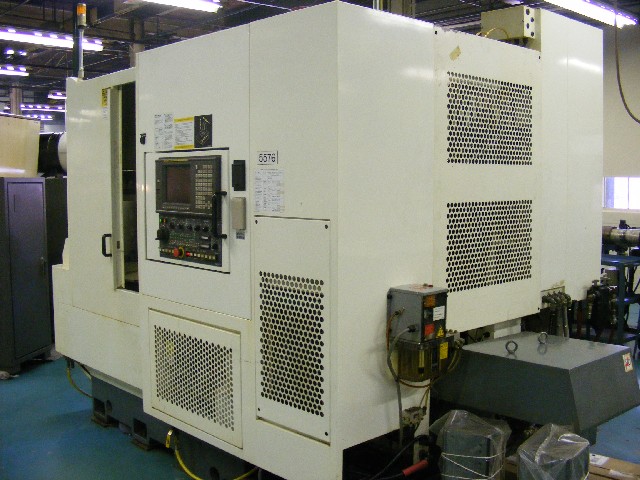

EXTERNAL REAR DISCHARGE LIFT-UP TYPE CHIP CONVEYOR,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
