CNC HORIZONTAL MACHINING CENTERS: MAKINO A51 CNC HORIZONTAL MILL, FANUC PRO-3, 22 x 22 x 23, 12000 RPM, COOL-THRU, CHIP, 1969 IPM, '02 (4536)

MAKINO A51 CNC HORIZONTAL MILL, FANUC PRO-3, 22 x 22 x 23, 12000 RPM, COOL-THRU, CHIP, 1969 IPM, '02 (4536)

Stock Number: 4536

CNC HORIZONTAL MACHINING CENTERS: MAKINO A51 CNC HORIZONTAL MILL, FANUC PRO-3, 22 x 22 x 23, 12000 RPM, COOL-THRU, CHIP, 1969 IPM, '02 (4536), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAKINO A51 CNC HORIZONTAL MILL, FANUC PRO-3, 22 x 22 x 23, 12000 RPM, COOL-THRU, CHIP, 1969 IPM, '02 (4536), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAKINO A51 CNC HORIZONTAL MILL, FANUC PRO-3, 22 x 22 x 23, 12000 RPM, COOL-THRU, CHIP, 1969 IPM, '02 (4536), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAKINO A51 CNC HORIZONTAL MILL, FANUC PRO-3, 22 x 22 x 23, 12000 RPM, COOL-THRU, CHIP, 1969 IPM, '02 (4536), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAKINO A51 CNC HORIZONTAL MILL, FANUC PRO-3, 22 x 22 x 23, 12000 RPM, COOL-THRU, CHIP, 1969 IPM, '02 (4536), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAKINO A51 CNC HORIZONTAL MILL, FANUC PRO-3, 22 x 22 x 23, 12000 RPM, COOL-THRU, CHIP, 1969 IPM, '02 (4536), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4536 CNC HORIZONTAL MACHINING CENTERS: MAKINO A51 CNC HORIZONTAL MILL, FANUC PRO-3, 22 x 22 x 23, 12000 RPM, COOL-THRU, CHIP, 1969 IPM, '02 (4536)Request a quote on stock# 4536
SpecificationDescription
NEW / INSTALLED2002 / 2004
PALLET SIZE15.75" x 15.75" (400mm)
MAX WORKPIECE SIZE24" x 35.4"
MAXIMUM PALLET LOAD881 LBS
NUMBER OF PALLETS2
X AXIS TRAVEL22.05"
Y AXIS TRAVEL22.05"
Z AXIS TRAVEL23.6"
B AXIS TABLE INDEXING1 DEG
RAPID TRAVERSE RATE X & Y / Z1969 IPM
CUTTING FEED RATE1772 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS12,000 RPM
SPINDLE MOTOR (2 SPEED GEARED)25 HP
TOOL CHANGER CAPACITY60 STATION ATC
TOOL CHANGE TIME ( T- T / C - C)0.9 / 2.2 SECONDS
MAXIMUM TOOL WEIGHT26.5 LBS
DIMENSIONS (APPROXIMATE)100" x 138" x 106"
MACHINE WEIGHT (APPROXIMATE)18,000 LBS

Equipped With:

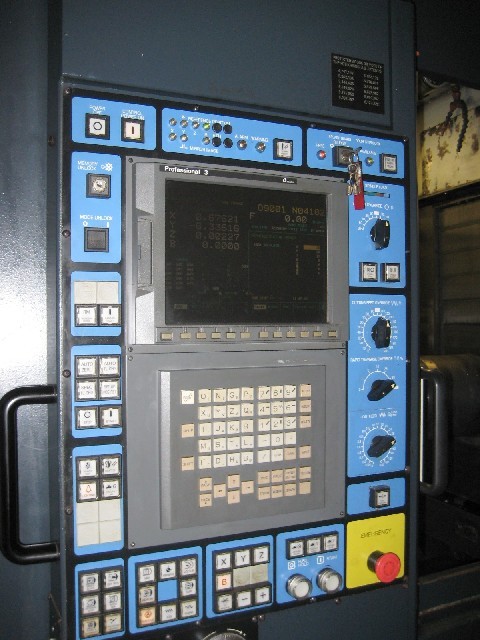

FANUC PROFESSIONAL 3 CONTROL WITH 10.4" COLOR MONITOR,
RS-232 PORT INTERFACE FOR DNC OPERATION,
THROUGH SPINDLE COOLANT,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
FULL GUARDING, INTERNAL CHIP AUGER, SPINDLE CHILLER,
EXTERNAL CHIP CONVEYOR WITH FILTRATION,
FULLY ENCLOSED GUARDING

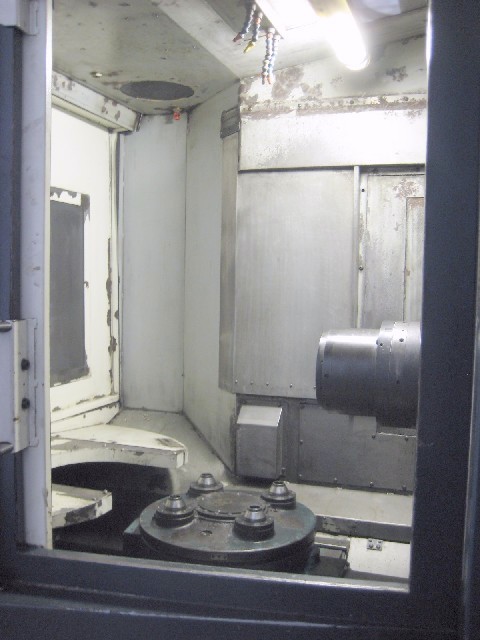

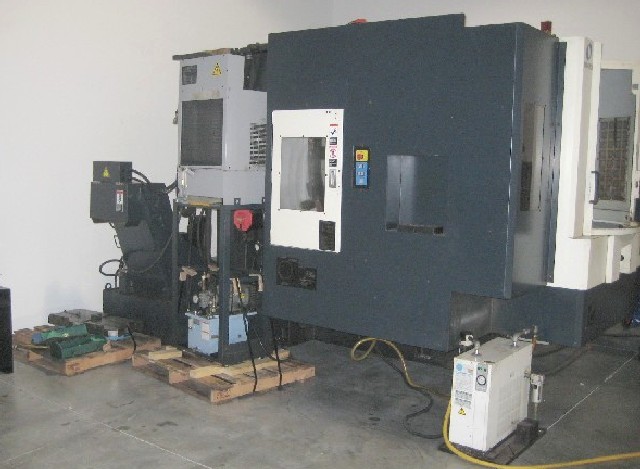

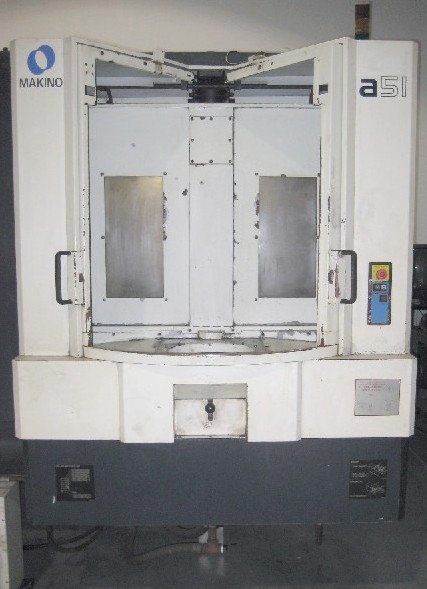

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
