CNC HORIZONTAL MACHINING CENTERS: MORI SEIKI SH-50 CNC HORIZONTAL MILL, MORI (FANUC) MSC-516, 24.8 x 23.6 x 25.6, 0.001 DEG, 12000 RPM, 60 ATC, '96 (4511)

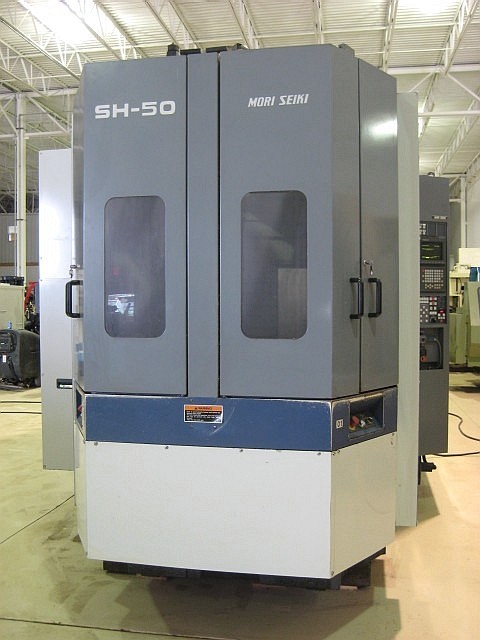

MORI SEIKI SH-50 CNC HORIZONTAL MILL, MORI (FANUC) MSC-516, 24.8 x 23.6 x 25.6, 0.001 DEG, 12000 RPM, 60 ATC, '96 (4511)

Stock Number: 4511

CNC HORIZONTAL MACHINING CENTERS: MORI SEIKI SH-50 CNC HORIZONTAL MILL, MORI (FANUC) MSC-516, 24.8 x 23.6 x 25.6, 0.001 DEG, 12000 RPM, 60 ATC, '96 (4511), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MORI SEIKI SH-50 CNC HORIZONTAL MILL, MORI (FANUC) MSC-516, 24.8 x 23.6 x 25.6, 0.001 DEG, 12000 RPM, 60 ATC, '96 (4511), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MORI SEIKI SH-50 CNC HORIZONTAL MILL, MORI (FANUC) MSC-516, 24.8 x 23.6 x 25.6, 0.001 DEG, 12000 RPM, 60 ATC, '96 (4511), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MORI SEIKI SH-50 CNC HORIZONTAL MILL, MORI (FANUC) MSC-516, 24.8 x 23.6 x 25.6, 0.001 DEG, 12000 RPM, 60 ATC, '96 (4511), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MORI SEIKI SH-50 CNC HORIZONTAL MILL, MORI (FANUC) MSC-516, 24.8 x 23.6 x 25.6, 0.001 DEG, 12000 RPM, 60 ATC, '96 (4511), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MORI SEIKI SH-50 CNC HORIZONTAL MILL, MORI (FANUC) MSC-516, 24.8 x 23.6 x 25.6, 0.001 DEG, 12000 RPM, 60 ATC, '96 (4511), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MORI SEIKI SH-50 CNC HORIZONTAL MILL, MORI (FANUC) MSC-516, 24.8 x 23.6 x 25.6, 0.001 DEG, 12000 RPM, 60 ATC, '96 (4511), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MORI SEIKI SH-50 CNC HORIZONTAL MILL, MORI (FANUC) MSC-516, 24.8 x 23.6 x 25.6, 0.001 DEG, 12000 RPM, 60 ATC, '96 (4511), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4511 CNC HORIZONTAL MACHINING CENTERS: MORI SEIKI SH-50 CNC HORIZONTAL MILL, MORI (FANUC) MSC-516, 24.8 x 23.6 x 25.6, 0.001 DEG, 12000 RPM, 60 ATC, '96 (4511)Request a quote on stock# 4511
SpecificationDescription
MANUFACTURED NEW1996
PALLET SIZE19.7" x 19.7" (500mm)
NUMBER OF PALLETS3
MAXIMUM PALLET LOAD1,100 LBS
SPINDLE CENTER TO PALLET TOP2.0" - 25.6"
SPINDLE NOSE TO PALLET CENTER5.9" - 31.5"
X AXIS TRAVEL24.8"
Y AXIS TRAVEL23.6"
Z AXIS TRAVEL25.6"
B AXIS INDEXING PALLET0.001 DEG (FULL 4th)
SPINDLE SPEEDS12,000 RPM
SPINDLE TAPERCAT 40
TOOL CHANGE CAPACITY60 STATION ATC
SPINDLE MOTOR30 HP
RAPID TRAVERSE RATE X, Y & Z AXIS1260 IPM
MAXIMUM WORKPIECE SWING DIAMETER28.7"
MAXIMUM WORKPIECE HEIGHT27.6"
CUTTING FEED RATE0.01 - 630 IPM
TOOL CHANGE TIME (TOOL TO TOOL)1.3 SECONDS
MAXIMUM TOO WEIGHT26.1 LBS
MAXIMUM TOOL LENGTH14.2"
APPROXIMATE DIMENSIONS111" x 178" x 135"
MACHINE WEIGHT (APPROXIMATE)34,000 LBS

Equipped With:
MORI SIEKI MSC-516 (FANUC) CNC CONTROL WITH 10.4" LCD SCREEN,
RS-232C PORT INTERFACE FOR DNC OPERATION,

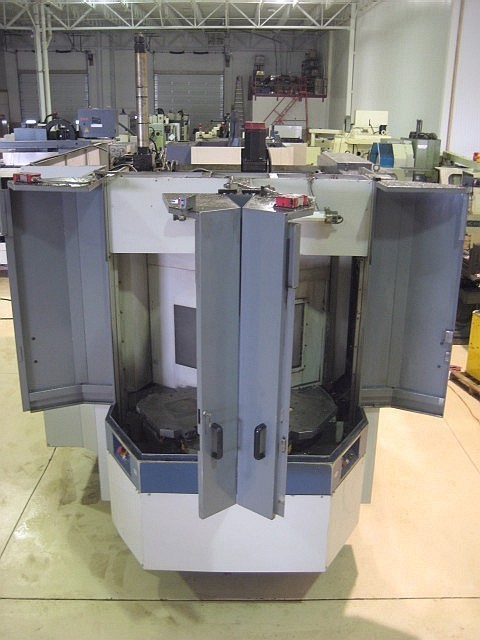

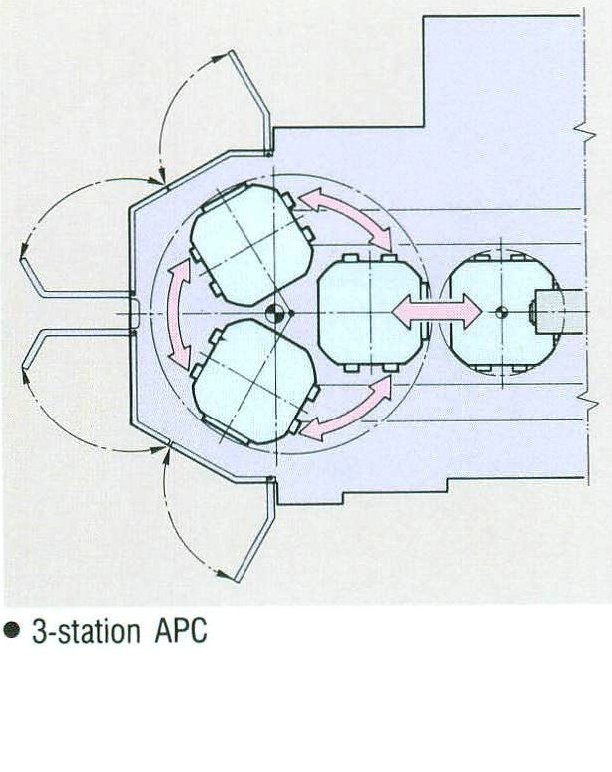

w/OPTIONAL 3-PALLET AUTO CHANGER CONFIGURATION,
FULL/TRUE 4TH AXIS PALLET INDEXING,
FLOOD COOLANT SYSTEM, MANUAL PULSE GENERATOR,
EXTERNAL LIFT-UP TYPE CHIP CONVEYOR,
FULLY ENCLOSED GUARDING
