CNC HORIZONTAL MACHINING CENTERS: OKK HM40 CNC MILL, OKK NEOMATIC 530, 400mm PALLETS, 22 x 22 x 22, 1 DEG, 10000 RPM, COOL-THRU, 40 ATC, '97 (4476)

OKK HM40 CNC MILL, OKK NEOMATIC 530, 400mm PALLETS, 22 x 22 x 22, 1 DEG, 10000 RPM, COOL-THRU, 40 ATC, '97 (4476)

Stock Number: 4476

CNC HORIZONTAL MACHINING CENTERS: OKK HM40 CNC MILL, OKK NEOMATIC 530, 400mm PALLETS, 22 x 22 x 22, 1 DEG, 10000 RPM, COOL-THRU, 40 ATC, '97 (4476), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: OKK HM40 CNC MILL, OKK NEOMATIC 530, 400mm PALLETS, 22 x 22 x 22, 1 DEG, 10000 RPM, COOL-THRU, 40 ATC, '97 (4476), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: OKK HM40 CNC MILL, OKK NEOMATIC 530, 400mm PALLETS, 22 x 22 x 22, 1 DEG, 10000 RPM, COOL-THRU, 40 ATC, '97 (4476), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: OKK HM40 CNC MILL, OKK NEOMATIC 530, 400mm PALLETS, 22 x 22 x 22, 1 DEG, 10000 RPM, COOL-THRU, 40 ATC, '97 (4476), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: OKK HM40 CNC MILL, OKK NEOMATIC 530, 400mm PALLETS, 22 x 22 x 22, 1 DEG, 10000 RPM, COOL-THRU, 40 ATC, '97 (4476), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: OKK HM40 CNC MILL, OKK NEOMATIC 530, 400mm PALLETS, 22 x 22 x 22, 1 DEG, 10000 RPM, COOL-THRU, 40 ATC, '97 (4476), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: OKK HM40 CNC MILL, OKK NEOMATIC 530, 400mm PALLETS, 22 x 22 x 22, 1 DEG, 10000 RPM, COOL-THRU, 40 ATC, '97 (4476), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: OKK HM40 CNC MILL, OKK NEOMATIC 530, 400mm PALLETS, 22 x 22 x 22, 1 DEG, 10000 RPM, COOL-THRU, 40 ATC, '97 (4476), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4476 CNC HORIZONTAL MACHINING CENTERS: OKK HM40 CNC MILL, OKK NEOMATIC 530, 400mm PALLETS, 22 x 22 x 22, 1 DEG, 10000 RPM, COOL-THRU, 40 ATC, '97 (4476)Request a quote on stock# 4476
SpecificationDescription
MANUFACTURED NEW1997
PALLET SIZE15.75" x 15.75"
MAXIMUM PALLET LOAD992 LBS
NUMBER OF PALLETS2
PALLET CHANGE TIME5 SECONDS
X AXIS TRAVEL22.05"
Y AXIS TRAVEL22.05"
Z AXIS TRAVEL22.05"
SPINDLE CENTER TO PALLET TOP1.97" TO 24.02"
SPINDLE NOSE TO PALLET CENTER5.91" - 27.95"
B AXIS INDEXING1 DEG
RAPID TRAVERSE RATE X, Y & Z AXIS1260 IPM
CUTTING FEED RATE0.04 - 630 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS35 - 10,000 RPM
SPINDLE MOTOR (2 SPEED GEARED)30 HP
TOOL CHANGER CAPACITY40 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL)1.3 SECONDS
TOOL CHANGE TIME (CHIP TO CHIP)4 SECONDS
MAXIMUM TOOL WEIGHT26.5 LBS
MACHINE WEIGHT (APPROXIMATE)22,000 LBS
FLOOR SPACE (APPROXIMATE)97" x 142"

Equipped With:

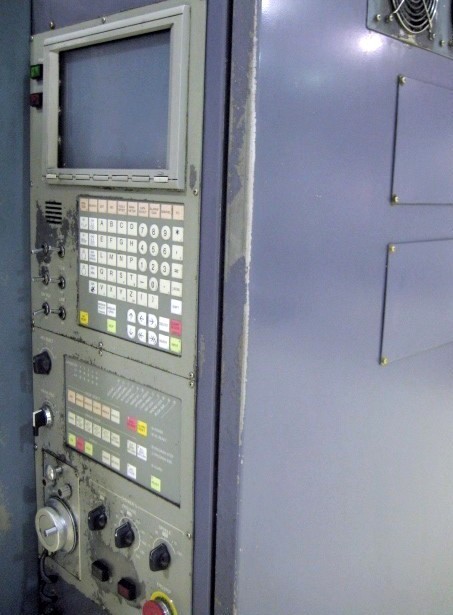

OKK NEOMATIC 530 CNC CONTROL WITH 9" LCD SCREEN,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
1000 PSI HIGH PRESSURE COOLANT THROUGH THE SPINDLE,
FLOOD COOLANT SYSTEM, MANUAL PULSE GENERATOR,
TURBO EXTERNAL LIFT-UP TYPE CHIP CONVEYOR,
DAIKIN CHILLER (SPINDLE OIL COOLING SYSTEM),
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
