CNC HORIZONTAL MACHINING CENTERS: MAKINO A-55E HORIZONTAL MILL, FANUC PRO-3, 22.05 x 22.05 x 23.6, 14000 RPM, CHIP, COOL THRU, '00 (4427)

MAKINO A-55E HORIZONTAL MILL, FANUC PRO-3, 22.05 x 22.05 x 23.6, 14000 RPM, CHIP, COOL THRU, '00 (4427)

Stock Number: 4427

CNC HORIZONTAL MACHINING CENTERS: MAKINO A-55E HORIZONTAL MILL, FANUC PRO-3, 22.05 x 22.05 x 23.6, 14000 RPM, CHIP, COOL THRU, '00 (4427), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAKINO A-55E HORIZONTAL MILL, FANUC PRO-3, 22.05 x 22.05 x 23.6, 14000 RPM, CHIP, COOL THRU, '00 (4427), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAKINO A-55E HORIZONTAL MILL, FANUC PRO-3, 22.05 x 22.05 x 23.6, 14000 RPM, CHIP, COOL THRU, '00 (4427), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAKINO A-55E HORIZONTAL MILL, FANUC PRO-3, 22.05 x 22.05 x 23.6, 14000 RPM, CHIP, COOL THRU, '00 (4427), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAKINO A-55E HORIZONTAL MILL, FANUC PRO-3, 22.05 x 22.05 x 23.6, 14000 RPM, CHIP, COOL THRU, '00 (4427), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAKINO A-55E HORIZONTAL MILL, FANUC PRO-3, 22.05 x 22.05 x 23.6, 14000 RPM, CHIP, COOL THRU, '00 (4427), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAKINO A-55E HORIZONTAL MILL, FANUC PRO-3, 22.05 x 22.05 x 23.6, 14000 RPM, CHIP, COOL THRU, '00 (4427), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: MAKINO A-55E HORIZONTAL MILL, FANUC PRO-3, 22.05 x 22.05 x 23.6, 14000 RPM, CHIP, COOL THRU, '00 (4427), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4427 CNC HORIZONTAL MACHINING CENTERS: MAKINO A-55E HORIZONTAL MILL, FANUC PRO-3, 22.05 x 22.05 x 23.6, 14000 RPM, CHIP, COOL THRU, '00 (4427)Request a quote on stock# 4427
SpecificationDescription
INSTALLED NEW9/2000
PALLET SIZE15.75" x 15.75"
MAX WORKPIECE SIZE24.8" DIA X 39.4 HEIGHT
MAXIMUM PALLET LOAD1,100 LBS
NUMBER OF PALLETS2
SPINDLE CENTER TO PALLET TOP3.1" - 25.2"
SPINDLE NOSE TO PALLET CENTER2.8" - 26.4"
X AXIS TRAVEL22.05"
Y AXIS TRAVEL22.05"
Z AXIS TRAVEL23.6"
B AXIS INDEXING.001 DEG
RAPID TRAVERSE RATE X & Y / Z3700 / 3307 IPM
CUTTING FEED RATE0.1 - 3700 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS60 - 14,000 RPM
SPINDLE MOTOR (2 SPEED GEARED)30 HP
TOOL CHANGER CAPACITY60 STATION ATC
TOOL CHANGE TIME ( T- T / C - C)0.9 / 2.7 SECONDS
MAXIMUM TOOL WEIGHT26.5 LBS
DIMENSIONS (APPROXIMATE)183.1" x 75.5" x 111"
MACHINE WEIGHT (APPROXIMATE)19,000 LBS

Equipped With:

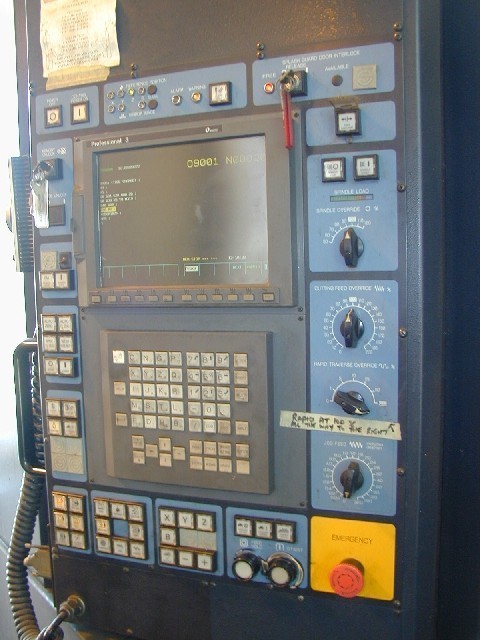

FANUC PROFESSIONAL 3 CONTROL WITH 10.4" COLOR CRT,
2100 FT MEMORY, GI CONTROL, 600 CUSTOM MACRO COMMON VARIABLE,
RETRACTABLE TABLE MOUNTED RENISHAW PROBE,
RS-232 PORT INTERFACE FOR DNC OPERATION,
HEAVY DUTY DOUBLE THRU SPINDLE COOLANT,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
FULL GUARDING, INTERNAL CHIP AUGER, SPINDLE CHILLER,
EXTERNAL MICROFINE CHIP CONVEYOR WITH FILTRATION,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
