CNC HORIZONTAL MACHINING CENTERS: KITAMURA MYCENTER H400B CNC MILL, FANUC 15M, 24 x 20 x 20, 0.001 DEG, 100 ATC, 10000 RPM, COOL THRU '96 (4113)

KITAMURA MYCENTER H400B CNC MILL, FANUC 15M, 24 x 20 x 20, 0.001 DEG, 100 ATC, 10000 RPM, COOL THRU '96 (4113)

Stock Number: 4113

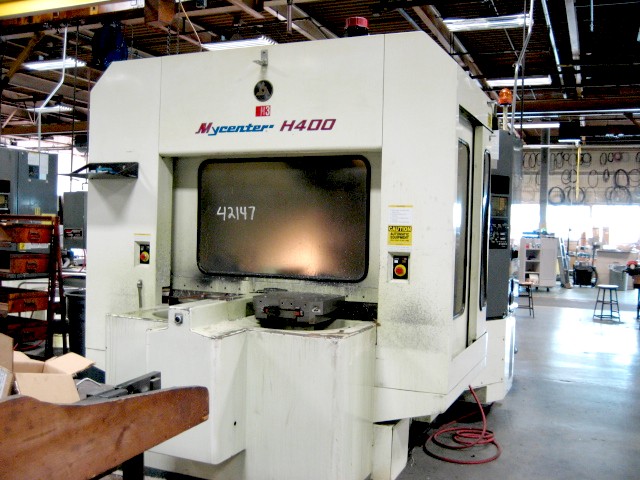

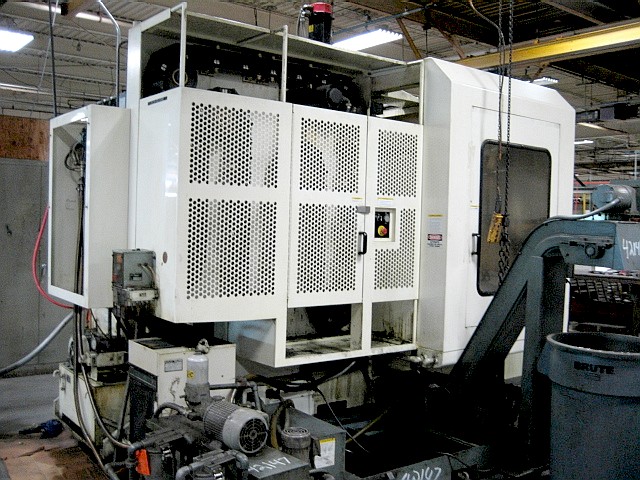

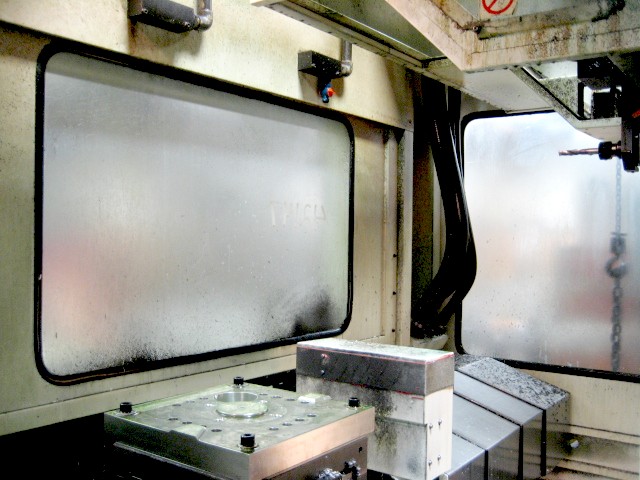

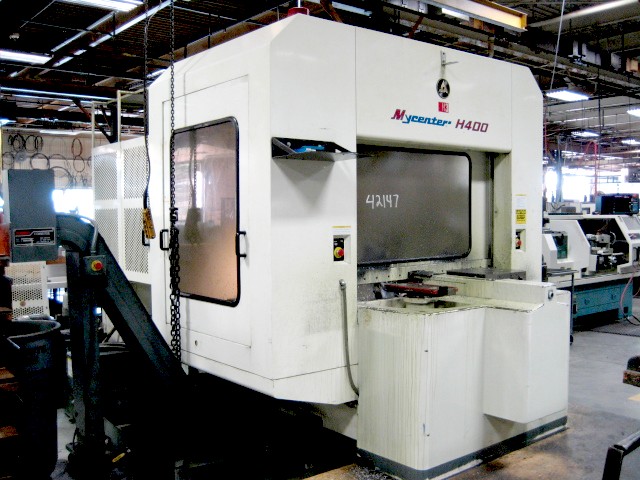

CNC HORIZONTAL MACHINING CENTERS: KITAMURA MYCENTER H400B CNC MILL, FANUC 15M, 24 x 20 x 20, 0.001 DEG, 100 ATC, 10000 RPM, COOL THRU '96 (4113), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: KITAMURA MYCENTER H400B CNC MILL, FANUC 15M, 24 x 20 x 20, 0.001 DEG, 100 ATC, 10000 RPM, COOL THRU '96 (4113), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: KITAMURA MYCENTER H400B CNC MILL, FANUC 15M, 24 x 20 x 20, 0.001 DEG, 100 ATC, 10000 RPM, COOL THRU '96 (4113), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: KITAMURA MYCENTER H400B CNC MILL, FANUC 15M, 24 x 20 x 20, 0.001 DEG, 100 ATC, 10000 RPM, COOL THRU '96 (4113), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: KITAMURA MYCENTER H400B CNC MILL, FANUC 15M, 24 x 20 x 20, 0.001 DEG, 100 ATC, 10000 RPM, COOL THRU '96 (4113), Click to view larger photo...       CNC HORIZONTAL MACHINING CENTERS: KITAMURA MYCENTER H400B CNC MILL, FANUC 15M, 24 x 20 x 20, 0.001 DEG, 100 ATC, 10000 RPM, COOL THRU '96 (4113), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4113 CNC HORIZONTAL MACHINING CENTERS: KITAMURA MYCENTER H400B CNC MILL, FANUC 15M, 24 x 20 x 20, 0.001 DEG, 100 ATC, 10000 RPM, COOL THRU '96 (4113)Request a quote on stock# 4113
SpecificationDescription
INSTALLED NEW1/1996
PALLET SIZE15.7" x 15.7"
MAXIMUM PALLET LOAD880 LBS
NUMBER OF PALLETS2
SPINDLE CENTER TO PALLET TOP1.97" - 22.0"
SPINDLE NOSE TO PALLET CENTER6.3" - 26.4"
X AXIS TRAVEL24"
Y AXIS TRAVEL20"
Z AXIS TRAVEL20"
B AXIS INDEXING0.001 DEGREE
RAPID TRAVERSE RATE X, Y & Z AXIS945 IPM
CUTTING FEED RATE0.01 - 393.7 IPM
SPINDLE TAPERBT 40
SPINDLE SPEEDS (2 SPEED GEARED)130 - 10,000 RPM
SPINDLE MOTOR20 HP
TOOL CHANGER CAPACITY100 STATION ATC
MAXIMUM TOOL WEIGHT22 LBS
TOOL CHANGE TIME (TOOL TO TOOL)1.3 SECONDS
MACHINE DIMENSIONS (APPROX.)132" x 132" x 122"
MACHINE WEIGHT (APPROXIMATE)24,000 LBS

Equipped With:

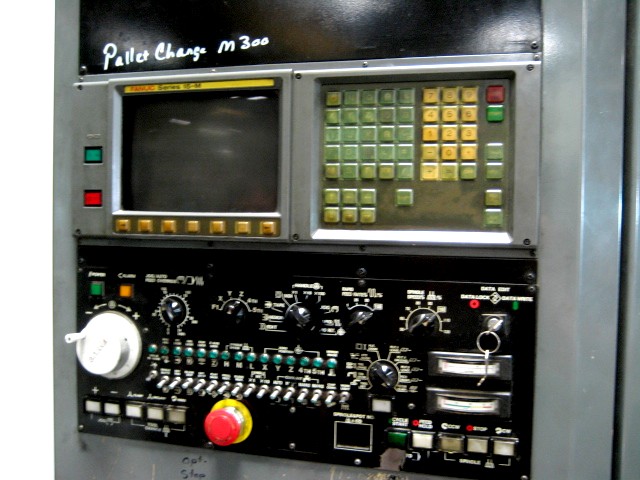

FANUC 15M CNC CONTROL WITH 9" MONOCHROME CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
COOLANT THROUGH THE SPINDLE (220 PSI RATING)
100 STATION ATC, FULL FOURTH AXIS (FULL B AXIS)
FLOOD COOLANT SYSTEM, MANUAL PULSE GENERATOR
EXTERNAL LIFT-UP TYPE EXTERNAL CHIP CONVEYOR
DAIKIN SPINDLE CHILLER (SPINDLE OIL COOLING SYSTEM)
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
