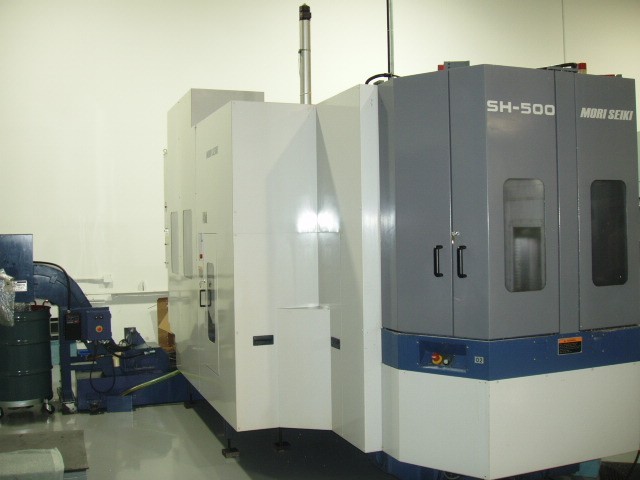

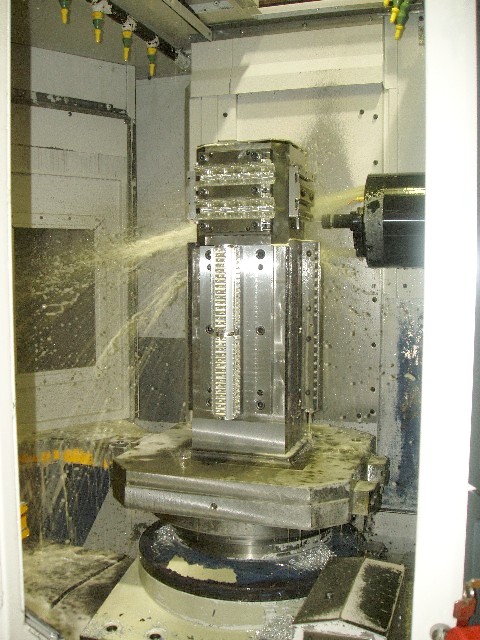

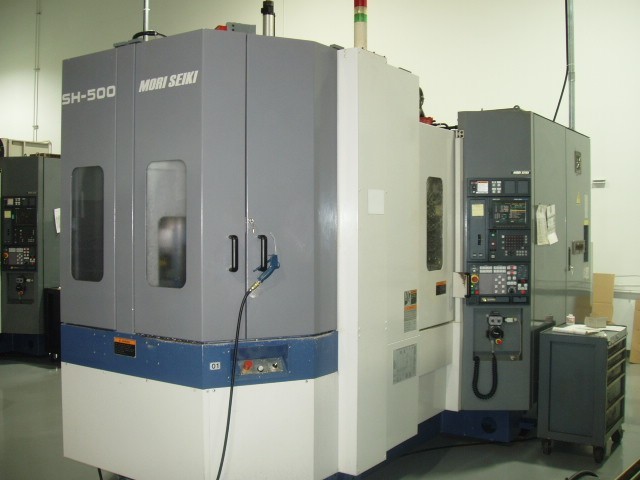

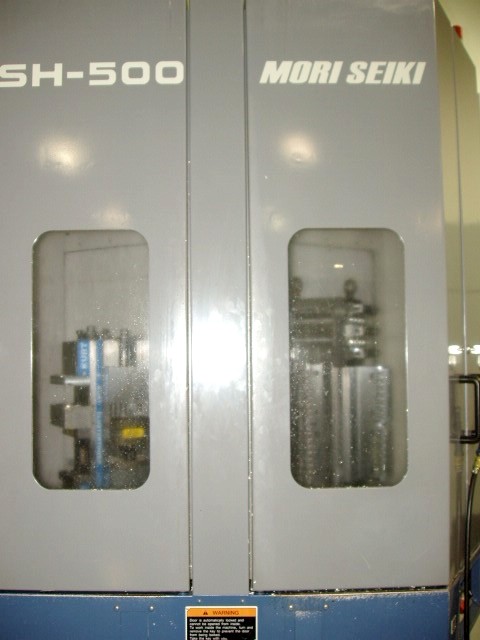

CNC HORIZONTALS: MORI SEIKI SH-500, MORI MSC-502, 24.8 x 23.6 x 25.6, 0.001º, 12000 RPM, 120 ATC, TOOL PROBE, '98 (3501)

MORI SEIKI SH-500, MORI MSC-502, 24.8 x 23.6 x 25.6, 0.001º, 12000 RPM, 120 ATC, TOOL PROBE, '98 (3501)

Stock Number: 3501

Age: 1998

CNC HORIZONTALS: MORI SEIKI SH-500, MORI MSC-502, 24.8 x 23.6 x 25.6, 0.001º, 12000 RPM, 120 ATC, TOOL PROBE, '98 (3501), Click to view larger photo...       CNC HORIZONTALS: MORI SEIKI SH-500, MORI MSC-502, 24.8 x 23.6 x 25.6, 0.001º, 12000 RPM, 120 ATC, TOOL PROBE, '98 (3501), Click to view larger photo...       CNC HORIZONTALS: MORI SEIKI SH-500, MORI MSC-502, 24.8 x 23.6 x 25.6, 0.001º, 12000 RPM, 120 ATC, TOOL PROBE, '98 (3501), Click to view larger photo...       CNC HORIZONTALS: MORI SEIKI SH-500, MORI MSC-502, 24.8 x 23.6 x 25.6, 0.001º, 12000 RPM, 120 ATC, TOOL PROBE, '98 (3501), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 3501 CNC HORIZONTALS: MORI SEIKI SH-500, MORI MSC-502, 24.8 x 23.6 x 25.6, 0.001º, 12000 RPM, 120 ATC, TOOL PROBE, '98 (3501)Request a quote on stock# 3501
SpecificationDescription
APPROXIMATE AGE1998
PALLET SIZE19.7" x 19.7"
MAXIMUM PALLET LOAD1,100 LBS
NUMBER OF PALLETS3
SPINDLE CENTER TO PALLET TOP2.0" - 25.6"
SPINDLE NOSE TO PALLET CENTER5.9" - 31.5"
X AXIS TRAVEL24.8"
Y AXIS TRAVEL23.6"
Z AXIS TRAVEL25.6"
B AXIS INDEXING0.001º
RAPID TRAVERSE RATE X, Y & Z AXIS1260 IPM
CUTTING FEED RATE0.01 - 630 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS12,000 RPM
SPINDLE MOTOR30 HP
TOOL CHANGER CAPACITY120 STATION ATC
MAXIMUM TOOL WEIGHT26.4 LBS
TOOL CHANGE TIME (TOOL TO TOOL)1.3 SECONDS
MAXIMUM TOOL LENGTH14.2"
MACHINE WEIGHT (APPROXIMATE)34,000 LBS

Equipped With:
MORI SIEKI MSC-502 CNC CONTROL WITH 10.4" LCD SCREEN
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
COOLANT THROUGH THE SPINDLE (200 PSI RATING)
OPTIONAL 3-PALLET AUTO CHANGER CONFIGURATION
OPTIONAL TOOL PRESETTER (PLUNGER TYPE TOOL EYE)
FLOOD COOLANT SYSTEM, MANUAL PULSE GENERATOR
EXTERNAL LIFT-UP TYPE EXTERNAL CHIP CONVEYOR
MICROFINE COOLANT FILTRATION FOR ALUMINUM CUTTING
DAIKIN SPINDLE CHILLER (SPINDLE OIL COOLING SYSTEM)
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
