ACCESSORIES-ATTACHMENTS-TOOLING: HAAS HA-5C INDEXER, 5C COLLET, 1 DEG, CABLE (4518)

HAAS HA-5C INDEXER, 5C COLLET, 1 DEG, CABLE (4518)

Stock Number: 4518

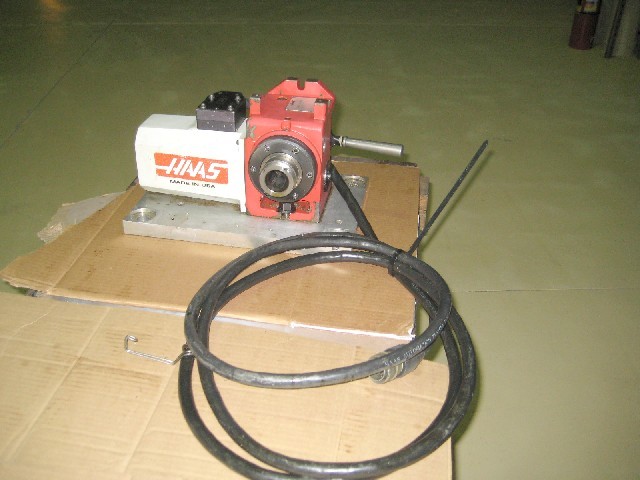

ACCESSORIES-ATTACHMENTS-TOOLING: HAAS HA-5C INDEXER, 5C COLLET, 1 DEG, CABLE (4518), Click to view larger photo...       ACCESSORIES-ATTACHMENTS-TOOLING: HAAS HA-5C INDEXER, 5C COLLET, 1 DEG, CABLE (4518), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4518 ACCESSORIES-ATTACHMENTS-TOOLING: HAAS HA-5C INDEXER, 5C COLLET, 1 DEG, CABLE (4518)Request a quote on stock# 4518
SpecificationDescription
TABLE SIZE / TYPE5C COLLET
MAXIMUM TORQUE30 FT-LBS
BACKLASH40 ARC-SECONDS
CENTER HEIGHT4.000 � 0.001"
MINIMUM MOVEMENT INCREMENT0.001�
SPEEDS0.001� to 270�/SEC
INDEXING ACCURACY�30 ARC-SECONDS
REPEATABILITY10 ARC-SECONDS
WORM GEAR DIAMETER2.8"
MAX ROTATION/STEP999.999�
MOTOR0.5 HP DC
MAX AIR PRESSURE120 PSI
WEIGHT OF CNC ROTARY TABLE48 LBS
WEIGHT OF CONTROLLER UNIT13 LBS

Equipped With:
INTERFACE CABLE FOR HA-5C ROTARY INDEXER
